Factory Price Handheld Mini Digital Multimeter Power Test

Product Description

Place of Origin:
Hebei, China
Brand Name:
UNIT
Model Number:
UNI-T UT136B
Measuring Current Range:
200μA/2200μA/22mA/220mA
Measuring Voltage Range:
220mV/2.2V/22V/220V/1000V
Measuring Resistance Range:
220Ω/2.2kΩ/22kΩ/220kΩ/
Measuring Capacitance Range:
22nF/220nF/2.2μF/22μF
Measuring Inductance Range:
2mH/20mH/200mH/2H/20H
Operating Temperature:
-40 °C ~ 1000°C
Dimensions:
200mm*93mm*40 mm
name:
Multimeter
Input Protection:
600Vrms
Auto Power Off:
Around 15 Minutes
Input Impedance for DCV:
1GΩ Max
Frequency (Hz):
10Hz-10MHz
Low Battery Indication:
≤2.5V
Power:
AA1.5*2
Standard Individual Packing:
Battery, Test Leads
Standard Accessories:
Battery, Test Leads
Product Net Weight:
370g
Packaging & Delivery
Selling Units:
Single item
Single package size:
20X10X5 cm
Single gross weight:
1.000 kg
Package Type:
box
Lead Time:

Quantity(Pieces)	1 - 1	>1
Est. Time(days)	15	To be negotiated

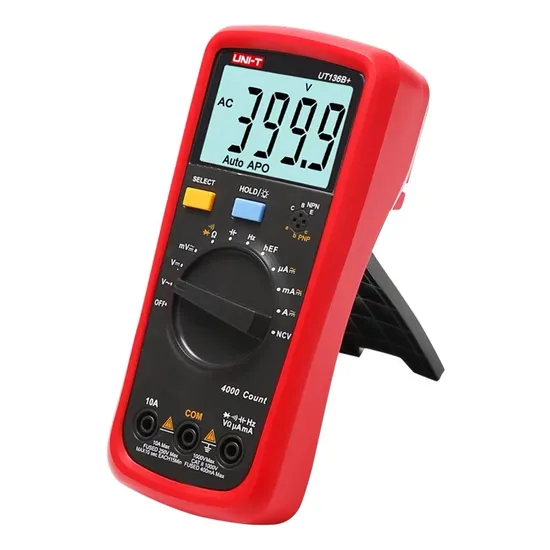

UNI-T UT136B Auto Range Digital Multimeter AC DC Frequency Resistance Tester
Product Description

Specifications	Range	Best Accuracy
Model		UT136B
DC Voltage	400mV/4V/40V/400V/500V	±(0.8%+1)
AC Voltage	400mV/4V/40V/400V/500V	±(1.2%+3)
DC Current	400uA/4mA/40mA/400mA/4A/10A	±(1.0%+2)
AC Current	400uA/4mA/40mA/400mA/4A/10A	±(1.2%+5)
Resistance	400Ω/4000Ω/40kΩ/400kΩ/4MΩ/40MΩ	±(1.0%+2)
Capacitance	4nF/40nF/400nF/4uF/40uF/100uF	±(4.0%+3)
Frequency	10Hz/100Hz/1kHz/10kHz/100kHz/1MHz/10MHz	±(0.5%+3)
Duty Cycle	0.1%~99.9%	√
Features
Diode		√
Continuity Buzzer		√
Auto Power Off		√
Low Battery Display		√
Input Impedance for Voltage Measurement	≥10MΩ	√
Data Hold		√
Max. Display		3999
General Characteristic
Power	9VBattery(6F22)
LCD Size	49mm×18mm
Product Color	Red +Grey
Product Net Weight	About 200g (Battery included)
Product Size	72mm×137mm×35mm
Standard Accessories	Test leads, Battery
Standard Packing	Giftbox, English Manual
Standard Quantity Per Carton	66 Pcs
Standard Carton Measurement	595mm×310mm×350mm
Standard Carton Gross Weight	About 22 Kg

Description
CTA-1000 Series CT Analyzer automatically determines all relevant current transformer values and compares the results with the selected standard. The device evaluates the current transformer as per the IEC or IEEE standard within seconds with the push of a button.
It facilitates fast and economical on-site testing and calibration of metering and protection current transformers. Manufacturers of current transformers, high voltage transformers and switchgear also use the CT Analyzer for tests during development and production.

Product Feature
1.Wide range of measurements;
2.Easy to use.One click can complete tests
3.Highest measurement accuracy: 0.05% / 2 min when calibrating on site;
4.Automatic evaluation according to IEC and IEEE standards;
5.Short commissioning times (duration of the automatic test < 2min);
6.Excellent workplace safety - Tests run at max. 180V;
7.Very small and lightweight (<9kg>
8.Professional pull box design, easy to carry, anti-vibration.

Applications
The following values can be determined using the CT/PT Analyzer:
1. CT:
(1) CT accuracy for different burdens
(2) CT ratio and phase-angle accuracy
(3) CT excitation characteristics
(4) CT inductance (saturated and unsaturated)
(5) Burden impedance
(6) CT winding resistance
(7) CT polarity
(8) ALF and FS (direct and indirect)
(9) CT residual magnetism
2. PT:
(1) PT excitation and saturation
(2) Burden impedance
(3) Winding resistance Saturated and non-saturated inductance
(4) PT polarity
Product Parameters

Type		CTA-1000C
Usage		CT,PT
Output		0~180Vrms,12Arms,36A(peak value)
Voltage measurement accuracy		±0.1%
CT Ratio	Range	1~40000
	accuracy	±0.05%
PT Ratio	Range	1~40000
	accuracy	±0.05%
Phase	Range	±2min
	accuracy	0.5min
DC resistance	Range	0~300Ω
	accuracy	0.2%±2mΩ
Burden	Range	0~1000VA
	accuracy	0.2%±0.02VA
Power supply		AC220V±10%,50Hz
Environmental Conditions		Operating temperature: -10ºC~50ºC Humidity:≤90%
Weight and Dimensions		Dimensions:365mm×300mm×165mm Weight:9.5kg

Standard Accesories:

No.	Name	Qty
1	Host	1
2	Up-flow reactor(optional)	1
3	Power line	1
4	Red test line	1
5	Yellow test line	1
6	Green test line	1
7	High current test line(optional)	2
8	Control line(optional)	1
9	Ground wire	1
10	Alligator clip	4
11	Alligator clip	2
12	U type insert	4
13	Thermal printing paper	4
14	U disk	1
15	Protective tube	5
16	Special screwdriver for protective tube	1
17	Quality testing report	1
18	Instruction manual	1
19	Aluminum alloy packing box	1

---
