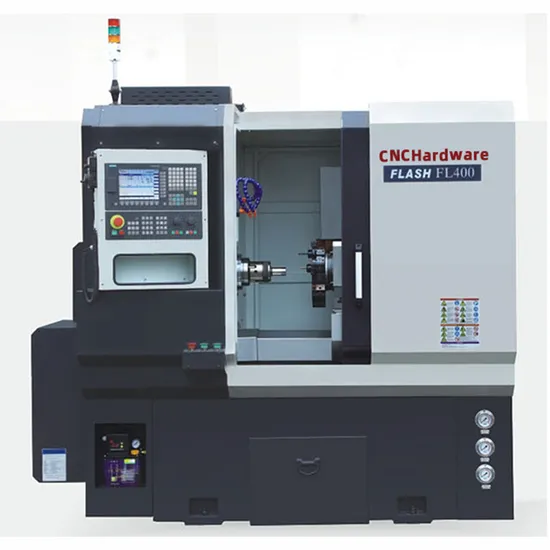

CNC Lathe Turning Machine High Speed Spindles 8 Stations FL400

Product Description

FL400 CNC Tools Machine 3-Jew Chucks Gang Type Toolings High Spped Spindles 8-Stations Turret
Standard Features
Manual 3-Jaw Chuck (FL400+) Pneumatic Collet (FL280, FL300) Gang Type Tooling (For Swing < 400mm) 4-Station Tool Post + Gang Plate (For Swing > 400mm) Ergonomic Operator Panel Design Automatic Lubrication System Automatic Coolant System Built-In Safety Features
Optional Features
Updated Chucks Updated Spring Collets Updated Control Systems Live Tooling Bar Feeder 8-Station Turret (Available on FL300/ FL400/ FL500/ FL550/ FL630) Specifications

		Unit	FL400
Capacity	Chuck/collet Bed type/ guideway Max. swing dia. Over bed Max. length of workpiece Max. swing dia. Over slide	type mm mm mm	Manual chuck 8" *Hydraulic chuck 8", *6" Flat/LM Φ400 320 Φ180
Spindle	Spindle bore Max. dia. Of through hole Spindle nose Spindle speed Spindle motor power	mm	Φ62	Φ48
		mm	Φ52	Φ40
			A2-6	A2-5
		rpm	2000	3000
			*3500	*4500
		KW	5.5/7/5
Axis	X/Z travel	mm	380/350
	X/Z rapid traverse	mm/min	20/20
Tool Post	Type		4-station toolpost
			*8-station turret
			*Gang type tooling
	No. of tool stations	No.	4-10
Others	Power capacity	kVA	11
	Dimensions (LxWxH)	mm	1950x1250x1620
	Weight (about)	Kg	2000
Note: *means optional

---
