Rubber Shoes Vulcanizing Tank / Vulcanizing Autoclave Machine

Product Description

Rubber Shoes Vulcanizing Tank / Vulcanizing Autoclave Machine
1. PRODUCT INTRODUCTION of Rubber Shoes Vulcanizing Tank / Vulcanizing Autoclave Machine
1-1. Basic introduction for Rubber Shoes Vulcanizing Tank / Vulcanizing Autoclave Machine Big Rubber Rolls/Rubber tube /Rubber pipe / Rubber Hose Autoclave Vulcanizing Tank for Rubber rolls retort can separate into rawness and cooked, prevent the pollution and tained in odor between the rawness and the cooked products, reach the standard of international food sanitation.
1. Double door operate ,incoming and out going is convenient ,the bacteria in the air it to be quarantined .
2. High temperature and pressure sterilize, saving energy and time ,increase the efficiency 5 times than the ordinary sterilizer
3. Lower the fungus stick energy consumption, The cost of every fungus stick is only 2 cents .
4.The equipment is convenient to operate, Can be devided into semi-automatic control and automatic control .
5. High Quality Food Autoclave Boiler/Curing vulcanization Tank for Mushroom can be used in sterilizing of any mushroom fungus stick
(1).According to rubber products
Rubber shoes vulcanizing autoclave
Rubber tubes vulcanizing autoclave
Rubber rollers vulcanizing autoclave
(2).According heating methods
Steam direct heating autoclave
Indirect heating autoclave
a. Steam indirect heating autoclave
b. Oil indirect heating autoclave
c. Air indirect heating autoclave
(3).According to control methods
Full-automatic control system
Semi-automatic control system
Manual control
1-2 Features Of Rubber Shoes Vulcanizing Tank / Vulcanizing Autoclave Machine
1. The body and bottom of autoclave Vulcanizing Tank is made of carbon steel.
2. Steam is filled into from the bottom of boiler, pneumatic angle seat valve controls air inlet automatically.
3. There are many holes regularly arrange on the surface of diffusion to diffuse steam evenly, temperature is uniformly distribute in the boiler.
4. Autoclave can be automatically heat up and vulcanize after setting procedures; it will be stop working and raise an alarm when finishing.
5. Four safety interlocks ensure the safety in the curing process. Meanwhile, the door can't be opened when there is pressure in the autoclave.
6. Insulation material is filled into the body to keep warming.
7. We adopt advanced design concept and manufacture. It can improve the effect of vulcanizing.
8. The size of equipment can be designed to satisfy customers' requirement.
2. Parameter of Rubber Shoes Vulcanizing Tank / Vulcanizing Autoclave Machine

Parameter \ Model	Electrical Heating Hot Air Autoclave 1800x7000MM
Temperature (ºC)	Max. 180
Pressure (Mpa)	Max. 1.20
Tank Diameter (mm)	1800
Working Length (mm)	7000
Total Cubic Meter (M3)	18
Steel Quality & Thickness	Q345R, 12mm Thickness.
Heating Way	Electric Heating Hot Air - Circulated
Door Opening	Manual Fast Opening
Heating Power (KW, 3 Sets)	132 (After reaching appointed temperature, only 1 set working to keep temp.)
Fan Power (KW)	11
Sealing Structure	Inflatable Silicone Seal
Circulating way	Circulated hot air
Control System	Siemens PLC
Heat Preservation Way	Built-in aluminum silicate insulation, Reinforcing steel wheel, Plus galvanized plate/sheet protection.
Safety Way	Door: Double Safety Interlocking Tank Body: Triple Safety Interlocking
Alarming Way	Automatic Alarming for Over-pressure Automatic Pressure Relieving
Temperature Tolerance	+1-2ºC
Pressure Tolerance	+0.01Mpa
Trolley	Equipped with platform trolley

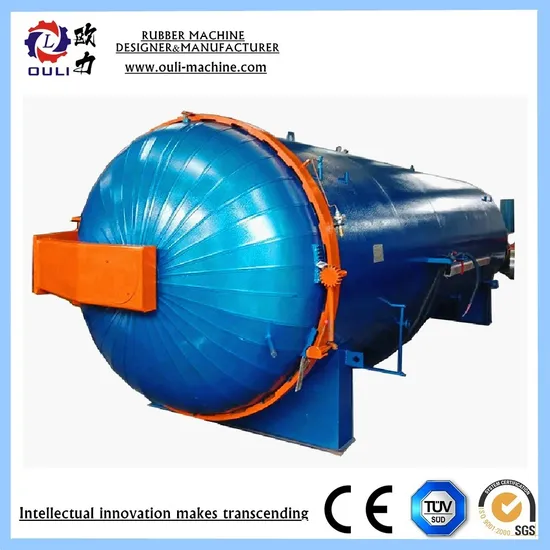

3. Sample pictures of Rubber shoes vulcanizing tank / vulcanizing autoclave / vulcanizing canister
Rubber shoes vulcanizing tank / vulcanizing autoclave / vulcanizing canister
QINGDAO OULI MACHINE co.,LTD make high quality rubber machine, we use the good quality material, complete management system, also excellent aftersale service, we hope to be one reliable factory for you!
Special manufacturer that has professional producing team and technical support Exclusive and unique solution can be provided to our customer by our well-trained and professional engineers and staff. best after sale---follow the whole producing situation,provide photos of machines loaded into containers, track the operating and using situation of client in case of any problems occur. reasonable price and flexible delievery time more than 30 years of experience of exporting ability
4. CUSTOMER FEEDBACK OF Rubber shoes vulcanizing tank / vulcanizing autoclave / vulcanizing canister

Rubber shoes vulcanizing tank / vulcanizing autoclave / vulcanizing canister
5. COMPANY INFORMATION---QINGDAO OULI MACHINE CO., LTD
5.1 OULI COMPANY
Established in 1997 , Qingdao Ouli machine CO., LTD was located in Huangdao District, the west coast of Qingdao city,Shandong province ,China.
Branches in Suzhou , Dalian etc were created in 2012 and 2015 .
We are specialized in rubber machinery designing,manufacturing and maintenance works
OULI main products:
Rubber Kneader Machine/Rubber mixing equipment / Rubber vulcanizing machine / Automatic and semi-automatic waste tire recycling equipment / Rubber calendaring machine / Rubber extruding equipment / Reclaimed rubber production line
Our machines have been exported to more than 20 countries such as America, Canada, Australia, Southeast Asia, Middle East,Brazil .
We warmly welcome customers visit factory and technology discussion is highly appreciated .
5-2 OULI workshop Of Rubber shoes vulcanizing tank / vulcanizing autoclave / vulcanizing canister

6. FAQ
Q1:Why choose Us?
1.More than 20 years history of OULI MACHINE factory.
6-8 years foreign sales experience staff, more efficiency and professional.
Engineers oversea service more than 20 countries .
2.ISO:9001,CE,BV certification approval
3.Service timely, Promise to give solution within 12 hours,Guarantee customer trouble free.
4.Short delivery date, No delay. Accept urgent order for prompt shipment.
Q2:What about delivery date?
It will be according to the quantity of machines. Normally machines will be shipment within 20-30 days after get deposit, No delay.
Accept urgent order for prompt shipment.
Q3:What's the warranty statement?
OULI MACHINE warrants all the products manufactured by OULI MACHINE to free from defects in material and workmanship Under normal use of a period of 12 months or 36months after the date of the original purchase price if repair or replacement is not possible of practical, OULI MACHINE warranty covers ONLY the product itself.
OULI MACHINE will assume no liability for labor costs, installation costs, or other losses.
Your warranty rights will be honored
Only when the product has been installed and used properly as deemed by OULI MACHINE,OULIMACHINE will not repair products damaged by improper use or faulty installation.
Q4:What about OULI oversea service ?
OULI will arrange oversea setting up and training works if customer need .
Customer should pay for accommodation , tickets and salary .
Meanwhile OULI has branches in different areas like north America , Southeast Asia , Brazil etc , etc .

---
