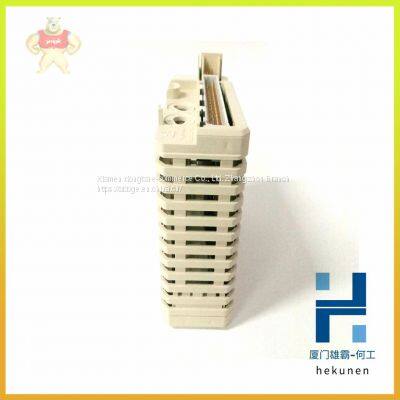

AO845 AO845A AO845A-eA ABB analog output module warranty and after-sales service
AO845 AO845A AO845A-eA ABB analog output module warranty and after-sales service
The AO845/AO845A Analog OutputModule for single or redundant applications has 8 unipolar analog output channels. The module performs self-diagnostic cyclically.Module diagnostics include: External Channel Error is reported (onlyreported on active channels) if the process power supplythat supplyvoltage to output circuitryis too low, or the output currentis less than the output setvalue and the output setvalue > 1 mA (open circuit). Internal Channel Error is reported if the output circuit can not give the right currentvalue. In a redundant pair the modulewill be commanded to error state bytheModuleBus master. Module Error is reported in case of Output Transistor Error, Short Circuit, ChecksumError, Internal Power Supply Error, Status Link Error, Watchdog or Wrong OSP behavior.
Features and benefits 8 channels of 4...20 mA For single or redundant applications 1 group of 8 channels isolated fromground Analog inputs are short circuit secured to ZP or +24 V HARTpass-through communication
Our Email: 2235954483@qq.com
contact number:13313705507
contacts：HE
General info Type Analog Output Signal specification 4..20mA Article number 3BSE045584R1 Number of channels 8 HART Yes SOE No Redundancy Yes High integrity No Intrinsic safety No Mechanics S800
Detailed data Resolution 12 bit Isolation Groupwise isolated from ground Under/over range ±15% Output load Max 750Ω Error Max. 0.1% Temperature drift Max. 50 ppm/°C Rise Time Output filter: Disable 23 ms, Enable max 4mA / 12.5 ms Input filter (rise time 0-90%) 23 ms (0-90%), max 4mA / 12.5 ms Update cycle time 10ms Current limiting Short circuit proof current limited output Maximum field cable length 600meters (656 yards) Rated insulation voltage 50 V Dielectric testvoltage 500 V a.c. Power dissipation Typ. 3.5 W Current consumption +5 VModulebus Max.125 mA Current consumption +24V external 218 mA Diagnostics Front LED’s F(ault), R(un), W(arning), O(SP) Status indication of supervision Module Error, Module Warning, Channel error Environment and certification CE mark Yes Electrical safety IEC 61131-2, UL 508 Hazardous Location C1 Div2 cULus, C1 Zone2 cULus, ATEX Zone 2 Marine certification BV, DNV-GL, LR Protection rating IP20 according to IEC 60529 Corrosive atmosphere ISA-S71.04 G3 Climatic operating conditions 0 to +55 °C (Storage -40 to +70 °C), RH=5 to 95 % no condensation, IEC/EN 61131-2 Pollution degree Degree 2, IEC 60664-1 Mechanical operating conditions IEC/EN 61131-2 EMC EN 61000-6-4and EN 61000-6-2 Overvoltage categories IEC/EN 60664-1, EN 50178 Equipment class Class I according to IEC 61140; (earth protected) Max ambient temperature 55 °C (131 °F), forvertical mounting in compact MTU 40 °C (104°F) RoHS compliance DIRECTIVE/2011/65/EU (EN 50581:2012) WEEE compliance DIRECTIVE/2012/19/EU Compability Use withMTU TU810, TU812, TU814, TU830, TU833, TU842, TU843 or TU852 Keying code DB Dimensions Width 45 mm (1.77”) Depth 102 mm (4.01”),111 mm (4.37”) including connector Height 119 mm (4.7”) Weight 0.21 kg (0.46 lbs.)

---
