Medical Sterilization Equipment Horizontal Autoclave 150 Liter to 500 Liter Automatic Type

Product Description

Medical sterilization equipment horizontal autoclave 150 liter to 500 liter automatic type

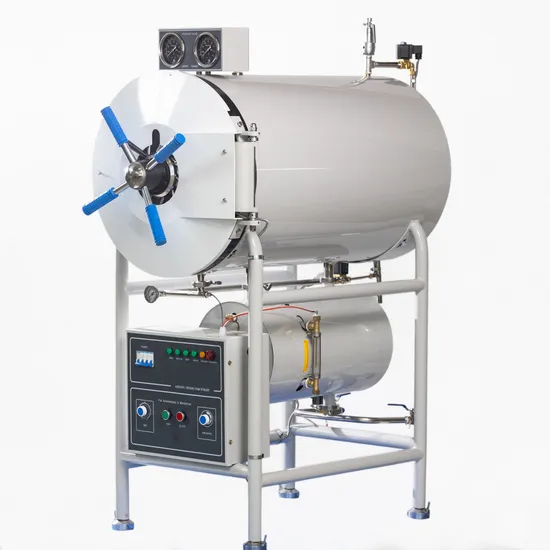

Horizontal cylindrical pressure steam sterilizer
Characteristics:
1. Sterilizing course automatic sterilization controlled,easy to operate.
2. With drying function,suitable dressing drying.
3. With over-temperature,over-pressure auto-protect device.
4. The door opening mechanism cannot be operated until the pressure in the chamber is reduced to 0.027MPa.It can't be start on if the door doesn't close well.
5.The safety value will be open automatically when the inner pressure over 0.24MPa,and the steam be exhausting to the water tank.
6. The power will be cut-off automatically,cut-off the water and alarm when the machine lacking water.
7. The chamber of the sterilizer is made of stainless steel. Product Parameters
Technical Data:

Technical data	WS-150YDA	WS-200YDA	WS-280YDA	WS-400YDA	WS-500YDA
Sterilizing chamber volume	150L φ440×1000 mm	200L φ515×1000 mm	280L φ600×1000 mm	400L Φ700×1100 mm	500L Φ700×1300 mm
Working pressure	0.22MPa 134ºC 105ºC - 134ºC 0-60 min 0-60 min ≤±1ºC
working temperature
Adjustment of temperature
Time of sterilization
Time of drying
Heat average
Power	9KW/380V 50Hz	9KW/380V 50Hz	12KW/380V 50Hz	18KW/380V 50Hz	18KW/380V 50Hz
Dimension	1400×600×1300	1400×670×1650	1400×770×1780	1430×880×1830	1800×900×1820
Transport dimension	1550×750×1850	1560×820×1850	1680×920×2100	1800×1050×2100	1850×1050×2100
G.W/N.W	320/240 KG	350/260 KG	465/365 KG	530/520 KG	580/470 KG
