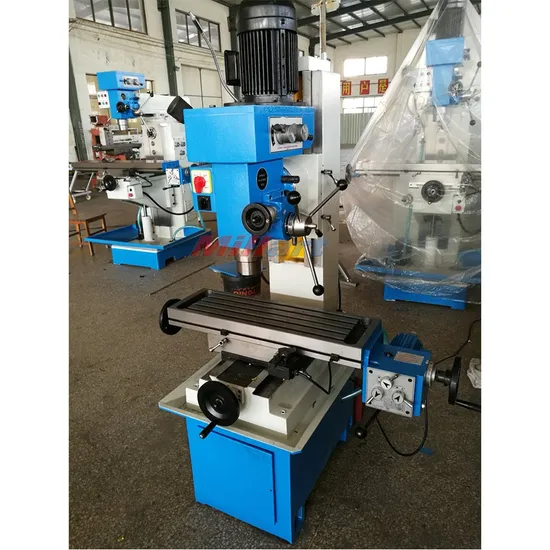

Bench Drilling Milling Machine Zx50c with Gear Driven Head

Product Description

Bench Drilling Milling Machine ZX50C with Gear Driven Head
Feature:
1.Universal use as milling machines and drill press
2. Easily shiftable gear drive ensures power transmission without losses
3. Gear box spindle drive
4. Head swivels into the horizontal level on both sided via crank and toothed gear, easy activation of manual micro-feed for the spindle quill
5. Spindle and quill with large diameter, radial and axial bearing allows use for milling machines
6. Milling table swivels horizontally is optional, including scale
7. Dovetail guides on all 3 axes
8. Head, table height can be adjusted through gear rack
9. Forward/reverse setting through motor switch
Specification:

Model	ZX50C
Max.drilling dia.(mm)	50
Max.end milling width(mm)	100
Max.vertical milling dia.(mm)	25
Max.taopping dia.	M16
Distance between spindle nose and table surface(mm)	50-410
Spindle speed range (r.p.m)	110-1760
Spindle travel(mm)	120
Table size(mm)	800×240
Table travel(mm)	400×215
Overall dimensions(mm)	1270×950×1800
Motor(kw)	0.85/1.5
N.W/G.W(kg)	500/600

Standard accessories:

Collet chuck kits	Drill chuck
Draw bar	Work lamp
Coolant system	operate tools
Reduction Sleeve
