11kv High Voltage, Low Loss, Energy Saving Distribution Oil-Immersed Transformer

Product Description

Product Description

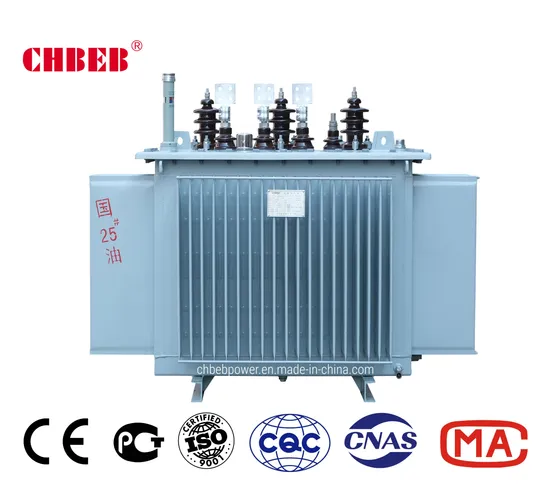

The S -M Series Oil-Immersed Distribution Transformer stands as a pinnacle of innovation and precision, a cutting-edge marvel designed for those who demand the utmost in reliability and performance. Building upon the esteemed S9 series, this three-phase transformer enhances and refines energy efficiency by skillfully adjusting loss coefficients and optimizing the copper-to-iron ratio. The result is a triumph of superior loss design paired with exceptional cost-effectiveness. At its core, this transformer boasts an iron core crafted from high-conductivity, low-loss silicon steel, resulting in significantly minimized no-load losses.
Our advanced high-voltage winding technology incorporates a sophisticated multi-layer structure, applicable to products up to 500kVA. For those transformers rated at 630kVA and beyond, we've introduced an innovative spiral type for low-voltage windings, ensuring enhanced electrical performance and formidable mechanical strength, particularly in the face of short circuits. A standout feature of this transformer is its ingenious pan-seal structure. This design meticulously isolates transformer oil from external air, dramatically slowing oil aging and significantly boosting operational reliability. The oil tank design is further elevated by the use of corrugated plates that facilitate optimal oil circulation and superior heat dissipation. This pragmatic yet robust design ensures proficient welding, minimizes the risk of leaks, and enhances fluidity and thermal regulation, ensuring peak performance. Detailed Photos

Product Parameters

Table 1 Energy efficiency rating of 10 kV oil-immersed three-phase double-winding non-excitation voltage-regulating distribution transformer
Rated capacity kVA	S22 1 Class SH25						S20 2 Class SH21						S13 3 Class SH15						Short circuit impedance %
	Electrical steel strip			Amorphous alloy			Electrical steel strip			Amorphous alloy			Electrical steel strip			Amorphous alloy
	No-load loss W	Load loss W		No-load loss W	Load loss W		No-load loss W	Load loss W		No-load loss W	Load loss W		No-load loss W	Load loss W		No-load loss W	Load loss W
		Dynl1/Yznll	Yyn0		ynl1/Yznl	Yyn0		Dynll/Yznl	Yyn0		Dynl1/Yznl	Yyn0		Dyn11/Yznl	Yyn0		Dynl1/Yzn1	Yyn0
30	65	455	430	25	510	480	70	505	480	33	535	510	80	630	600	33	630	600	4.0
50	80	655	625	35	735	700	90	730	695	43	780	745	100	910	870	43	910	870
63	90	785	745	40	880	840	100	870	830	50	930	890	110	1090	1040	50	1090	1040
80	105	945	900	50	1060	1010	115	1050	1000	C0	1120	1070	130	1310	1250	60	1310	1250
100	120	1140	1080	60	1270	1215	135	1265	1200	75	1350	1285	150	1580	1500	75	1580	1500
125	135	1360	1295	70	1530	1450	150	1510	1440	85	1615	1540	170	1890	1800	85	1890	1800
160	160	1665	1585	80	1870	1780	180	1850	1760	100	1975	1880	200	2310	2200	100	2310	2200
200	190	1970	1870	95	2210	2100	215	2185	2080	120	2330	2225	240	2730	2600	120	2730	2600
250	230	2300	2195	110	2590	2470	260	2560	2440	140	2735	2610	290	3200	3050	140	3200	3050
315	270	2760	2630	135	3100	2950	305	3065	2920	170	3275	3120	340	3830	3650	170	3830	3650
400	330	3250	3095	160	3660	3480	370	3615	3440	200	3865	3675	410	4520	4300	200	4520	4300
500	385	3900	3710	190	4380	4170	430	4330	4120	240	4625	4400	480	5410	5150	240	5410	5150
630	460	4460		250	5020		510	4960		320	5300		570	6200		320	6200		4.5
800	560	5400		300	6075		630	6000		380	6415		700	7500		380	7500
1000	665	7415		360	8340		745	8240		450	8800		830	10300		450	10300
1250	780	8640		425	9720		870	9600		530	10260		970	12000		530	12000
1600	940	10440		500	11745		1050	11600		630	12400		1170	14500		630	14500
2000	1085	13180		550	14000		1225	14640		710	14800		1360	18300		720	18300		5.0
2500	1280	13360		670	15450		1440	14840		860	16300		1600	21200		865	21200
