Product Details
Product Description
Product Description

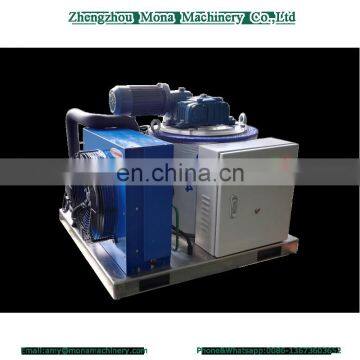

High quality Salt/Fresh Water flake ice machine/maker for sale Used in Fishing Boats Restaurants Hotels FarmsHigh quality Salt/Fresh Water flake ice machine/maker for sale Used in Fishing Boats Restaurants Hotels Farms
Mob/whatsapp/wechat:008613673603652
Email:amy(at)
Skype:monamachine
Product Description
Introduction of Flake ice machine/maker:
Flake ice machine also can be called flake ice maker, flake ice making machine, flake ice plant, ice flake plant, ice flake making machine, ice flake machine, ice flaker, etc. Focusun owned world-leading and rich-experienced ice making technology, Here you can find the best ice flake machine with high efficiency which widely applied in commercial and even industrial, machine daily production capacity ranges from 1ton to 60ton, we believe you will be very satisfied with our excellent design and energy saving features.
Application of Flake Ice machine/maker:
Suit for refreshing vegetable, fruit, foodstuff in supermarket; blast cooling for processing of fishery products and butchery; cooling process in fermentation, dairy production; chemical dyes; cooling in concrete and mining, skiing ground, medicine, aquatic food, seafood, poultry slaughtering etc.;
Flake ice is dry, pure, powder-less, not easy to block.Its thickness is about 1.8mm-2mm, without edges or corners
which can protect the cooling food, fish, seafood ad other products;
Cooling system: Air/Water Cooling
Our advantages of Flake Ice machine/maker:
we provide one-stop services;
Under PLC program control system, ice discharge automatically: hygienic and labor-saving;
Emergency Alarm: Your people will be alarmed once the emergency happens;
Use stainless steel 304 or carbon steel chromium.The scratching-style system inside machine ensure
constant running at the lowest power consumption, exquisite welding and processing technology ensure
high-efficiency heat transfer and energy saving.
Principle of Flake ice machine/maker:
Ice skate, water sprinkling pan, principle axis and low water pan are driven by decelerator and run slowly counterclockwise. The water flows into the water distributive pan from the water inlet of evaporator, and then sprinkles over on the ice freezing surface evenly through water sprinkler, becoming a water film. The water film has a heat exchange with the refrigerant in the refrigerant runner and its temperature quickly decreases till forming of a layer of thin ice on ice freezing surface. Under the extrusion of ice skate, the thin ice layer turns into ice flake and then falls into ice storage bin from the ice outlet. The partial unfrozen water then returns to the cold water tank through water receiving plate from water return outlet.
Technical parameters of Flake ice machine/maker::
Model
|
| Refrigerating capacity (kw)
| Power
| Total power (kw)
| Dimension(mm)
| Weight(kg)
|
MN-02T
| 200
| 1.8
| 1P/220V/60HZ
| 1.2
| 760*730*450
| 115
|
MN-05T
| 500
| 3.7
| 3P/380V/50HZ
| 2.5
| 1310*890*780
| 195
|
MN-1T
| 1,000
| 6.5
| 3P/380V/50HZ
| 4.8
| 1310*970*880
| 227
|
MN-1.2T
| 1200
| 7.8
| 3P/380V/50HZ
| 5.4
| 1310*970*980
| 263
|
MN-1.5T
| 1500
| 9.8
| 3P/380V/50HZ
| 7.3
| 1310*970*980
| 364
|
MN-2T
| 2000
| 13
| 3P/380V/50HZ
| 8.5
| 1500*1095*1040
| 423
|
MN-2.5T
| 2500
| 16.2
| 3P/380V/50HZ
| 9.2
| 1500*1095*1200
| 456
|
MN-3T
| 3000
| 19.5
| 3P/380V/50HZ
| 12.2
| 1750*1190*1200
| 530
|
MN-4T
| 4,000
| 26
| 3P/380V/50HZ
| 16.3
| 1700*1650*1250
| 630
|
MN-5T
| 5,000
| 32.5
| 3P/380V/50HZ
| 19.6
| 1700*1650*1450
| 760
|
MN-6T
| 6,000
| 39
| 3P/380V/50HZ
| 23.5
| 1700*1650*1450
| 867
|
MN-8T
| 8,000
| 49
| 3P/380V/50HZ
| 26.6
| 2500*2000*1560
| 968
|
MN-10T
| 1,0000
| 65
| 3P/380V/50HZ
| 32.5
| 2500*2000*1700
| 1260
|
MN-15T
| 1,5000
| 95
| 3P/380V/50HZ
| 58
| 3100*2160*1865
| 2120
|
MN-20T
| 2,0000
| 130
| 3P/380V/50HZ
| 63
| 3100*2160*2050
| 2860
|
MN-25T
| 2,5000
| 160
| 3P/380V/50HZ
| 75
| 3100*2160*2265
| 2940
|
MN-30T
| 3,0000
| 195
| 3P/380V/50HZ
| 86
| 3500*2700*2350
| 3240
|
Our stock of Flake ice machine/maker::
Usage of flake ice machine/maker:
Delivery of flake ice machine/maker:
Packaging & Shipping
Our Services
Bank slip
Certifications
Contact details
Any questions and inquiry you are warmly welcome :
>>
