Baldan Disc Plough Fish 3 Disc Plow Farm Implements Agricultural Machinery Tractor Mounted

Product Description

Product Description

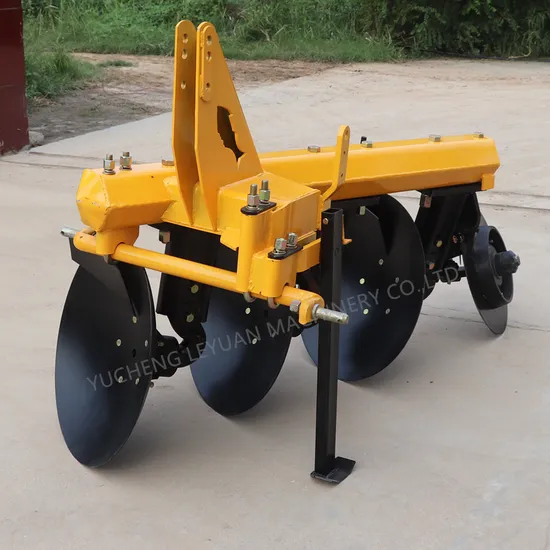

1LY Baldan Disc plough is specially designed, manufactured and borrowed according the features of foreign disc plough, it is Fully-suspended with four wheel tractor. And the discs are rotary motion when tuning the soil. This mounted disk plow is especially suitable for cultivation in the land with weeds, stems and frictional soil with bricks.
Product Parameters

Model	1LY-2	1LY-3	1LY-4	1LY-5
Width of cut (mm)	600	900	1200	1500
Depth of cut (mm)	250~300
Dia of disc (mm)	660
Q'ty of disc	2	3	4	5
Weight (kg)	350	400	470	560
Tractor power (hp)	40	60	80	120
Mounted cat	Cat ll

Detailed Photos

Packaging & Shipping
Company Profile
Established in 2012, Yucheng Leyuan Machinery Co. Ltd, is a professional agricultural machinery manufacturer integrating research, development, production, sale and service of agricultural machinery. LeYuan has advanced machining, welding, forging, shaping, heat treatment processing technology.
Located in Yucheng City Shandong Province, Leyuan company covers an area of 22000 square meters, in which standard workshop floor space covers more than 6000 square meters. The company owns more than 60 employees, engineer and quality control personnel.
Our main products include disc harrow, disc plough, cultivator, share plow, farm trailer, grass mower, seeder, harvester, disc blade, break shovel and other agro parts. Especially in heat treatment of the blade, we have accumulated rich experience, the production of blade with excellent technology and reliable quality has won the customer's widely recognized.
With the market and the user's actual demand, Leyuan machinery is constantly trying to promote the integration of agricultural machinery and agricultural arts. The company based on China local market and exported to the United States, Australia, Mexico, Thailand, Pakistan, Indonesia, Morocco, Nigeria, South Africa, Sudan, Taiwan, and other countries and regions.

Our Advantages
Direct factory of various kinds of disc plows/ploughs ,agro disc harrows ,cultivator ,trailers ,mowers ,seeders,threshers and so on, and the related agricultural machinery spare parts. With complete production line of material cutting,heat treatment, hot forging ,machining,welding ,powder coated painting, you will find the best choice between price and quality from Yucheng Leyuan Machinery co.,ltd

---
