New Design High-Speed Plastic Corrugated Pipe Production Line

Product Description

Details :

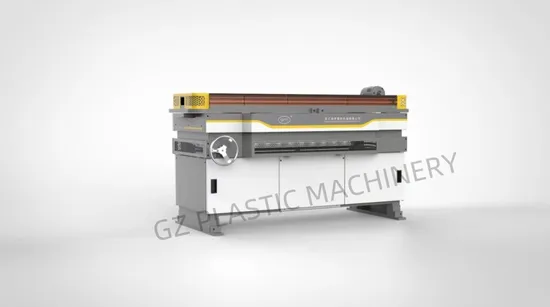

Model XGS series High Speed Corrugated Pipe Production Line ( Gear Drive) has adopted PLC control system, which is complete functions easy operation , has linkage functions. When machine power cut off happens in the process of the production , it can effectively protect the safety of equipment and mould. It uses a whole closed track to transfer moulds, stable operation and high production efficiency guarantee the fastest production , the speed can reaching 3 meters per minute. Also this kind of production line can equipped with one mould with double chambers , it's can save a considerable cost for customers.
Main Technical Parameters :

Item No	Motor Power (KW)	Production Speed (m/min)	Mould Perimeter (mm)	Diameter (mm)	Extruder	Total Power (KW)
GS-14-2	1.1	5-25	1978	φ7---φ14	φ45---φ50	25
XGS-55-3	4	5-30	3051	φ10---φ55	φ50---φ65	30
XGS-55-4	4	5-30	4068	φ10---φ55	φ65---φ80	30-50

Notes: The specification are subject to change without prior notice.
Applications :
This production line is suitable for such production : auto-mobile wire harness tube , electric wire conduit , drain pipe of washing machine , air-condition tube , telescopic tube , medical breathing tube and other kinds of tubular products etc....
PACKAGE
Workshop
FAQ Q: Are you trading company or manufacturer ?A: We are factory. Q: How long is your delivery time?A: Generally it is 20-45 days after receiving the deposit.The special time need discussing the new delivery date . Q: How do you make the quotation for clients?
A:Please offer the following information, so we can give you price and our advice as manufacturer:
1. Type of pipe you want to produce.
2. Pipe diameters.
3. Raw material and its types
If you can send us photos of your samples, it would be highly appreciated. Q: What is your terms of payment ?A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us .

---
