Wireless PDA 2D Barcode Data Collector Handheld Inventory Machine (HS-X7)

Product Description

Product Parameters

Color	Black
CPU speed	72MHz
Keyboard	T9
Memory
RAM	16KB
ROM	16MB
Screen
Size	2.4''
Color	16bit true color (65536 colors)
Resolution	240*320
Physical
Battery	Rechargeable Lithium-ion (3.7V,1900mAh)
Working time	16 hours
Standby	15 days
Dimension	138mm×60mm×30mm
Material	ABS + silicone
Charging indicator	LCD
Working current	160mA
Standby current	8mA
Safety standard	National laser safety standard Class II
EMC	CE & FCC DOC compliance
Scanning
Light Source	650nm
Scan Pattern	Single line
Decode Rate	100±2 scans / second
Resolution	3mil
Scan width	20mm@window,220mm@200mm
Depth of Field	0~250mm (0.33mm,PCS 90%)
Roll	30°
Pitch	65°
Skew	55°
Print contrast	Not less than 30%
Operating Mode	Continuous / itemized scanning
Error Rate	1/5million
indicator	Beeper,LCD
Barcode supported	EAN-8,EAN-13,UPC-A,UPC-E,Code 39,Code 93,Code 128,EAN128,Codaber,Industoal 2 of 5,Interleave 2 of 5,Matrix 2 of 5,MSI

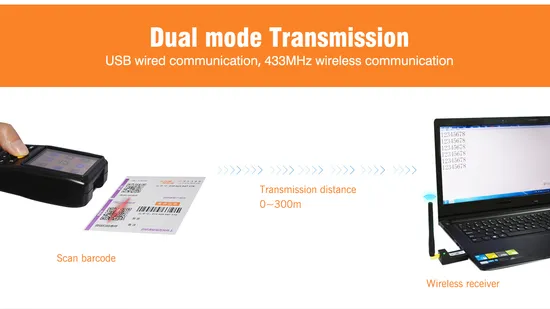

Transmission
Cable	USB 2.0
Wireless	433MHz(Max.300m)
Environment
Storing Temperature	-20ºC~60ºC
Working Temperature	0ºC~45ºC
Humidity	5%~95%
Lumination	Max.5,000 Lux (Fluorescence)

Model

HS-E7	Barcode data collector (For 1D)	433M Wireless/USB	RAM: 16K; ROM:16MB (100000+ item records can be saved) Battery: 3.7V,2800mAh
	Barcode data collector (For 2D)
HS-X7	Barcode data collector / Barcode Handheld Inventory Device (For 2D barcode, support Download product informaton )	433M Wireless/USB	RAM: 16K; ROM:16MB (100000+ item records can be saved) Battery: 3.7V,1,900mAh

Company Profile
After Sales Service
FAQ FAQ
1. Are you manufacturer?
Yes, we are manufacturers. We have been in PC/POS/Mobile Payment product & Solution for Eight years. We can provide OEM / ODM customized service according to our customers' various application and demands.
2. Would you provide SDK for me?
Yes, we offer free SDK if you order sample. All the contents in a CD ROM with sample together.
3. What warranty for the products?
According to our warranty policy, we will provide 12 months warranty time from the shipment date for our all products (Excluded the consumable parts). As for the mass order, we will provide certain proportion spare parts or RMA machine for local service.
4. What is the minimum order?
We accept one piece for standard products. If require OEM, will see detailed requirements and confirm MOQ to you from our sales department.
5. Can we get the free sample?
Sorry, generally we would not provide the free sample. If the customer confirm the specification and price, they can order the sample firstly for the testing and evaluation. When they place the mass order, we can return the sample cost to the customers.
6. Do you accept Paypal?
Yes, we accept paypal. Besides, we accept Western Union, T/T, L/C Secure payment and so on.
7. What's the delivery time?
Generally, sample can be shipped in 2-3 working days after payment. For quantity, theleading time will be 1-4 weeks depend on exact quantity.
8.Which way to deliver the goods?
By Express: DHL UPS TNT FEDEX or ARAMEX EMS E-packing.
By Sea: Inform us the Sea Port to check which ship line.
By Air: Inform us the Airport to check which flight.
Or pick up by the customers.
9. What the after sale service?
a. Our all products will provide 12 months warranty;
b. Enough stock spare parts for guarantee;
c. Professional engineers provide 7*24 online service; If required, our engineers can provide local service in field;
d. As for the returned failure products, we will fix it and return to the customers in one week after we received it;

---
