Filter Bag Sewing Machine, PTFE Sewing Thread

Product Description

Product Parameters

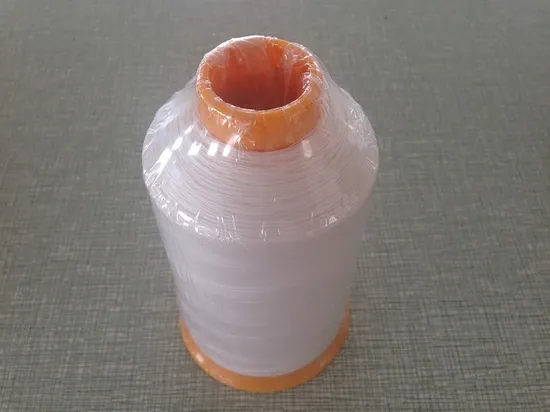

Heat Resistant Ptfe Sewing Thread
The Description of Heat Resistant Ptfe Sewing Thread
PTFE sewing thread is a high quality sewing thread for high temperature resistant filtration bag, The thread may be made into special reinforced type according to the requirement.
Sewing thread: 1400dtex(1200~1300den); Breaking strength>33N; Elongation: 5%, Con-tinuous length>3000M
Application: Sewing the body of filter bag for PTFE, Nomex, PPS, P84, Fluoro-US silk and Acrylicfiber.
Sewing the enhanted filter bag, or strengthening sewing the opening and the bottom of the bag.
100% PTFE Sewing Thread for Industrial Filter Bag Sewing Machine
The Description of PTFE Sewing Thread
Thanks to its excellent stability,non-aging,strength does not decay,it is a bag of "loyal partner" in the filter area. The PTFE sewing thread the first choose for its uniqe characteristics in the performance of heat resistance, abrasion resistance, acid resistance and also the working life. The PTFE sewing thread has a max heat resistance of 260 degree, which mean it can hold 10 minutes at 260 degree and other material can't. And the Ptfe sewing thread has a great strength, it won't change the shape and also its capacity when time goes. Compared to the Nomex, polyester, fiberglass sewing thread, it is more expensive, still we all like it.
With the characteristic of good chemic stability of PTFE, it is widely used in the fiber materials under high temperature, strong acids and strong base condition.
PTFE fiber can be classified into White Staple Fiber and Brown Staple Fiber. Brown fiber is produced from carried-added emulsion treated with pressure and extrusion, followed by removal of carriers under high sintering, there are still several residues of carbonized carriers adhered to the fiber surface, which makes the fiber brown in color.
PTFE Sewing Thread is made of PTFE Filament Fiber.
100% PTFE is mainly used to produce heat resistance PTFE filter bag.
Technical Information of Ptfe Sewing Thread

Spec.	PTFE13	PT29	PT36	PT48	PT56	PT59
Density	1250±90den	1600±120den	1900±150den	2600±90den	1250±90den	1600±90den
Break Force	≥33N	≥45N	≥50N	≥60N	≥43N	≥55N
Eltension at break	6%	6%	6%	6%	6%	6%
Titre	480t/M	480t/M	480t/M	480t/M	480t/M	480t/M
Heat resistance	-190~+260ºC	-190~+260ºC	-190~+260ºC	-190~+260ºC	-190~+260ºC	-190~+260ºC
Shrinkage	<2%	<2%	<2%	<2%	<2%	<2%
Length per kg	7200M	5600M	4800M	3400M	7200M	5600M
Plied Yarn	3	4	5	6	3	4

The Features of PTFE Sewing Thread:
1. Anti UV and none-aging
2. Excellent chemical stability, no corrosion
3. High tensile strength
4. Very low shrinkage
5. Excellent abrasion resistance
6. Suitable for high temperature environments up to 260 degree centigrade
7, Excellent chemical stability, no corrosion.
8, High tensile strength.
9, Very low shrinkage.
10, Excellent abrasion resistance.

Application of Ptfe Sewing Thread
PTFE sewing thread for dust bag sewing thread sewing of high temperature resistant, can make Nomex, PPS, PTFE dust bags, It is characterized by high strength, high temperature resistance, corrosion
resistance, suitable for sewing bag automatic sewing production line, high production efficiency.
100% Ptfe Sewing Thread Specification:

No.	SFF10T1	SFF12T1	SFF15T3
Material	100%PTFE	100%PTFE	100%PTFE
Density	1000D	1200D	1500D
Tensile	3.8kg	4.56kg	5.7kg
Strength on Normal temperature	>4g/D	>4g/D	>4g/D
Strength on high temperature	>1.3g/D	>1.3g/D	>1.3g/D
Working temperature	-200-286	-200-286	-200-286
Shrinkage	≤3%	≤3%	≤3%
Color	white	white	white
Meter/Kg	≈9100	≈7580	≈6050

Ptfe Sewing Thread Size and Delivery

• Material	100% PTFE Filament
• Production Process	Ring Yarn & TFO (Two For One)
• Quality	Extra Lubrication, Non-Knot & High-Resistance
• Color	raw white
• Size	20/2, 20/3, 20/6, 30/2, 30/3, 40/2, 40/3, 50/2, 50/3, 60/2 & 60/3
• Production capacity	1000pc/day
• Packing	12pcs/Inner Box, 20Box/Carton
• MOQ	200pcs
• Payment Term	T/T, D/P, L/C At Sight,
• Price Term	FOB, CIF
• FOB port	Ningbo, Shanghai

Our Service
What can we provide for you?
1, Professional and patient reply for the consulations.
2, High qualified products.
3, Competitive price against other suppliers.
4, Professional instruction during the installation.
5, Continuous and stable after-sale service.
6, Oversea service avalibale.
Company Information of GRACE Filter:
We are a company with more than 10 years experience in filtration field, and we mainly focus on the filter bag and dust collector. We are a company enjoying a good reputation in and out of our country. Our goal is to optimize the performance of the dust filters to maximize the filtration effects and lessen the air pollution. To make sure our products can fit the working condition in the factory, we can also provide special design for customers. We strive constantly to improve our products and services for the benefit or our customers, providing dust filters with a long working while reducing emissions.
Please do not feel hesitate to contact us if you have needs in these field, we would provide the best service we could.

---
