Sym5300thbfs 430c-10 Concrete Mounted Pumps Concrete Pump Trucks 43m Boom

US$150,000.00
1-4 Pieces
US$145,000.00
5+ Pieces

Basic Info.

Model NO.
SYM5300THBFS 430C-10
Type
Concrete Pump
Shotcrete Type
Wet
Machining Process
Hydraulic
Structure
Cylinder Type
Productivity
160/96m³/H
Feeding Height
1380mm
Vibrating Amplitude
2.6mm
Certification
ISO9001: 2000
Condition
New
Color
Red
Dimension(L*W*H)
14690*2530*4000mm
Max. Vertical Conveying Distance
42.5m
Max. Horizontal Conveying Distance
37.7m
Weight
31500 Kg
Horizontal Reach
37.7 M
Reach Depth
27 M
Vertical Reach
42.5 M
Chassis Model
Sym5350thb1e
Height
4000 mm
Output
160/96 M³/H
Pressure
7/12 MPa
Articulation(°)
89
Rear Outrigger Spread L-R(mm)
7813
Stroke Length(mm)
1600
End Hose Diameter(mm)
125
Transport Package
Standard Ocean Freight
Specification
14690*2530*4000mm
Trademark
Top brand
Origin
China
HS Code
8705909100
Production Capacity
350piece/Year

Packaging & Delivery

Package Size
1170.00cm * 255.00cm * 400.00cm
Package Gross Weight
31500.000kg

Product Description

product title

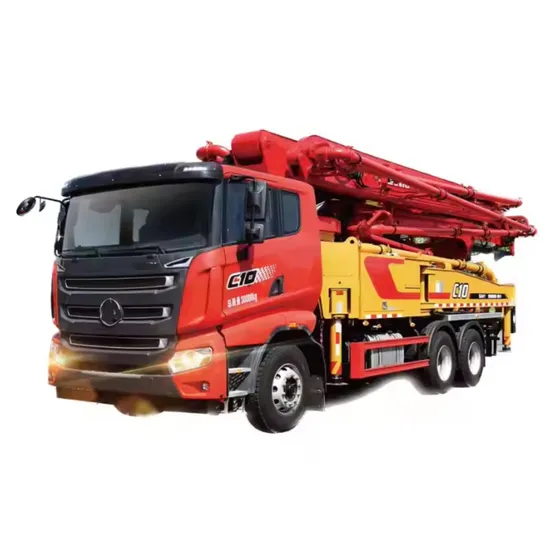

China 43m SYM5300THBFS430C-10 Truck-mounted Concrete Pump Truck
Product Description
· · A 10% increase in pumping efficiency
· · smoother flow, less blockage, and meet long-time pumping need
· · Dual-purpose machine: quickly transforms into a line pump
· · Various boom types & flexible working posture
· · Less site limitation, smaller footprint, more comprehensive placement range · · High configuration cab & exceptionally comfortable driving experience
· · Single-button operation design and optimized flow of the entire process

•Continually monitors more than 200 aspects of the system during operation. Faults are displayed on the monitor. Review of the
detected faults can reduce troubleshooting time by 70%.


Our C10 series truck mounted concrete pump exemplifies It's precise, rigorous manufacturing philosophy and uncompromising focus on safety
· · International authoritative-certificate lighthouse factory & world-class manufacturing capability· · Optimized essential parts with ultra-high-strength steel· · Open hydraulic system & high configuration· · customized chassis & imported Engine· · Stable signal & precise control
Product Parameters
SYM5300THBFS 430C-10
Length(mm)
11500
Width(mm)
2550
Height(mm)
3970
Dead Weight(kg)
29000
Vertical Reach(m)
42.5
Horizontal Reach(m)
37.7
Reach Depth(m)
27
Min. Unfolded Reach(m)
11
Length(mm)
3970
Articulation(°)
89
Length(mm)
6300
Articulation(°)
180
Length(mm)
6924
Articulation(°)
180
Length(mm)
6924
Articulation(°)
230
Length(mm)
8636
Articulation(°)
210
Rotation(°)
±360
Front Outrigger Spread L-R(mm)
8431
Rear Outrigger Spread L-R(mm)
7813
Output (m3 /h)(Low/High-Pressure)
120/70
Pressure (MPa)(Low/High-Pressure)
8/13
Delivery Cylinder Diameter(mm)
230
Stroke Length(mm)
1600
Hydraulic System
Open
Hydraulic System Oil Pressure(MPa)
32
Oil Tank Capacity(L)
320
Water Tank Capacity(L)
700
Pipe Diameter(mm)
125
End Hose Length(m)
3
End Hose Diameter(mm)
125
Chassis Model
SYM5330THB1F
Engine Type
D09C6-340E0
Engine Maximum Net Power(kW/rpm)
244/1900
Fuel Tank Capacity(L)
300
Max. Speed(km/h)
85
