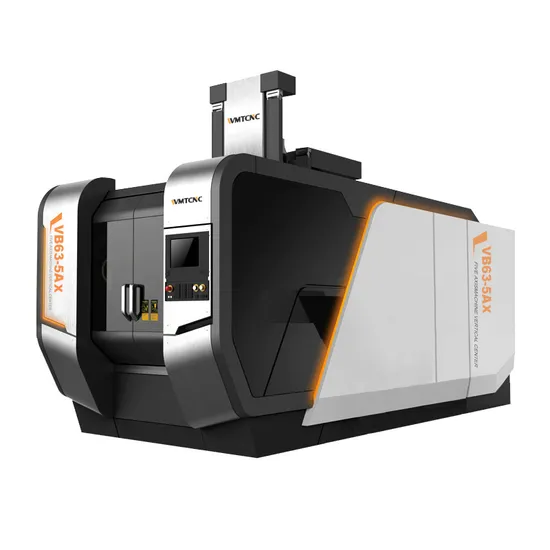

High accuracy cnc vmc machine VB63-5AX 5 axis machining vertical milling machine

Product Description

Product Description
Mineral casting VB63-5AX 5 axis machining vertical milling machine main features:
1. The Y-axis adopts a double-drive structure, which makes the machine more steady when moving at high speed.
2. The machine structure adopts thermal inertia and symmetrical design of motion balance, and adopts gantry axis synchronization control to ensure the stability of the machine when the moving parts are moving at high speed or large load cutting.
3. Adopting QT600 box-type spindle box structure to improve the cutting rigidity of the machine.
4. Adopting double swing angle rotary table structure, which can perform 5-axis linkage machining.
5. Arbitrary angle positioning accuracy processing, to meet the processing needs of complex curved parts.
6. Adopting torque motor direct drive technology, eliminating transmission gears and greatly improving running accuracy and speed.
7. Adopting hydraulic clamping system, which can realize high-precision positioning machining.

specification		VB63-5AX
Processing range	X axis travel	mm	800
	Y axis travel	mm	800+400(Tool change travel)
	Z axis travel	mm	600
	Distance from spindle nose to worktable surface	mm	150-750
	A axis		±120°
	C axis		Continuous 360°
Worktable	Worktable size	mm	Φ630
	Max. swing dia. of workpiece	mm	Φ850
	Max. loading of worktable	kg	850
	T-slot width	mm	14
	Center hole size	mm	Φ50H7
	A-axis locking torque	N·m	2×2500
	C-axis locking torque	N·m	2800
Feed	X/Y/Z rapid feed speed	m/min	50/50/50
	A/C axis spindle	rpm	60/120
Spindle	Spindle taper		HSK-A63
	Max. working speed	r/min	18000
	Rated power	kW	38
	Rated torque	N·m	95
Position	X/Y/Z positioning accuracy	mm	0.008(Overall length)
	X/Y/Z re-positioning accuracy	mm	0.004(Overall length)
	A/C axis positioning accuracy	″	10
	A/C axis re-positioning accuracy	″	4
Tool	Type		Umbrella type
	Tool magazine capacity		40
	Max. tool size	mm	Φ75/Φ120/300
	(Full tool diameter / empty adjacent tool diameter / length)
	Max. tool weight	kg	6
Other	Air source pressure	mPa	0.65

Detailed Images
Company Profile
FAQ
Q1: How is the warranty?
A1: Warranty time is 13 months after BL date.
Q2: Can we visit your factory before order?
A2: Sure. All new and old friends are welcomed to visit us at our factory. Besides, we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking.
Q3: Do you have a stock?
A3: Sorry, most of our machines don't have stock, we always produce according to order. However, if during fairs months, maybe have few samples back from fairs.
Q4: What's the MOQ?
A4: One set only.
Q5: How about your quality?
A5: We have approved the ISO9001:2008 Quality management system.ISO14001 Environmental management system, OHSAS18001 International occupational health and safety management system, and Social Accountability 8000(SA8000). Most products have been approved by the European and American safety standards, including CE, GS, EMS&UL,90% of our products are exported to more than 60 countries and regions around the world, especially to Europe and America market and always win high reputation. So you can rest assured of our quality products and our best services.
Q6: Do you have professional engineers?
A6: Yes, we have professional engineers and designers. We can provide OEM services.
Q7: Can you provide customized machines?
A7: Yes, we can design and manufacture according to your specific requirements.

---
