China Factory 10kw New UHF Four-Dipole Antenna for Television Transmitting Equipment

Product Description

Product technical data
Product name: UHF four-dipole TV transmission antenna
Equipment model:ZRFM-4O
Equipment origin:Jiangsu
Manufacturer:Confucianism Nanjing Radio and Television Equipment Co., Ltd

Product Description
Product name: UHF four-dipole TV transmission antenna
Equipment model: ZRUHF-4O
UHF four-dipole TV transmission antenna is a directional plate antenna, which has the characteristics of wide frequency band, high gain, small standing wave ratio and flexible and convenient installation.
1. The configuration of the unit board can be changed according to the requirements of different service areas, that is, the horizontal pattern of the antenna array can be changed to give full play to the maximum benefits of radiation
2. Different wave speed down tilt and zero filling can be adopted according to different service area requirements
3. It can cooperate with multiplexer to form a common transmission antenna system.The UHF four-dipole TV transmission antenna designed and produced by our company not only has high gain (G ≥ 12.3dB four layers and four sides), wide frequency band (470~860MHZ), low standing wave ratio (S ≤ 1.1), but also uses a glass fiber reinforced plastic cover (material is 191 # unsaturated resin). The antenna is waterproof, corrosion resistant, strong wind resistance, long service life, and its technical performance reaches the domestic leading level. The standing wave ratio of the antenna system meets the requirements of duplex and multi-purpose use. It is one of the first choice products of decimeter band TV transmission antenna.
All indicators of the antenna system comply with the standards of GY/T 5088-2013 Technical Indicators and Measurement Methods for Transmission Antenna Feeder System of TV and FM Broadcasting.

Product Parameters

Frequency range	470~900MHZ
Unit board power capacity	≥ 3.0KW
Input impedance	50 Ω
Input interface	IF45~50KF
Antenna gain	four layers G ≥ 12.3db. (six layers: 13.8db)
Standing wave ratio	S ≤ 1.09
Front windshield area	0.48m ²
Weight	18KG
Antenna material	the vibrator is made of copper, the reflector is made of corrosion-resistant stainless steel plate (or rust-proof aluminum plate), and the antenna mask is made of fiberglass.
Waterproof sealing material	703 silica gel+self-soluble waterproof glue+PVC tape
Antenna size	1000mm Χ 500mm Χ 320mm

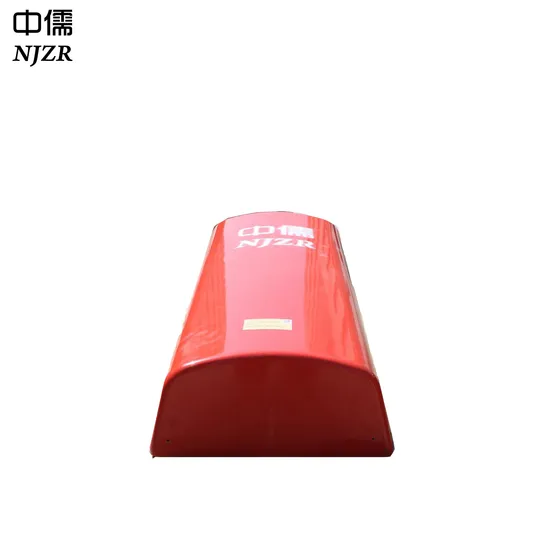

Detailed Photos

---
