Continuous Net Veneer Dryer with Two Working Layers

Product Description

Product Parameters

model	BG1333-13+2	Remarks
Working width	2800 mm
Working decks	3 decks
Length of heating section	13*2000 mm=26000 mm
Length of cooling section	2*2000=4000 mm
Total power	181.7 kw
Transport motor	7.5 kw*3=22.5 kw
Heating motor	11 kw*13=143 kw
Cooling motor	4 kw*2+3 kw*2=14 kw
Out put stacker	2.2 kw*1=2.2 kw
Veneer transportation speed	1.5~15 m/min
Heating medium	Saturated steam	Thermal oil
Saturated steam pressure	0.6~1.0 Mpa
Drying temperature	150~170 ºC	170~190 ºC
Steam consumption	4300 kg/h
Oil boiler capacity		2,600,000 Kcal
Veneer density	~590 kg/m³
Available veneer thickness	1.5~3.2 mm
Veneer initial moisture content	70~80 %
Veneer final moisture content	10~12 %
Load ratio	85 %
Drying capacity	~4.3 m³/h
Roller spacing	333 mm
Overall dimension(L*W*H)	46970*5150*4150 mm
Front veneer conveyor	6525 mm
Back veneer conveyor	7365 mm
Hydraulic lift BSJ48-3T	3 pieces (for two in lets and one exit)
Lift table specifications	Stroke: 450~1650mm Table size: 2600*1200mm Hydro-cylinder: φ100 mm*350ST*2 Motor power: 3kw Capacity: 3000kg Dimensions:2600(L)*1200(W)*450(H)mm Weight: 1100 kg/piece
Total weight	98800 KGS
Containers	3*40HQ

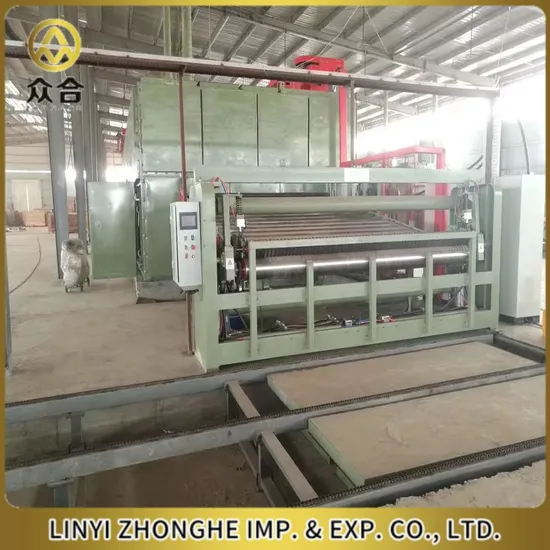

Machine Photos for Reference
Certifications
Company Profile

FAQ
Frequently Asked Questions
1. Rich experience and professional design
We have lots of experience in exporting plywood machine production.
Each equipment location, passage will be designed reasonably to meet safety production.
2. Competitive price
ZHONGHE has own factory, with the same configuration, the price is competitive.
And we are familiar with the Chinese market, our suppliers provide high-quality cost-effective accessories.
3. Timely after-sale service
We have over 15 skilled technicians offer after-sale service, will be sent to the customer's factory to assist in the installation and debugging of the flooring production line until it runs well and asked for quick responses to customer questions.
4. One-stop solution
ZHONGHE provides one-stop service, including market analysis and professional technical consultation, raw materials ,equipment installation, personnel training.Professional after-sales service team,renovation of old equipment,make turnkey projects.
5. Quality control
Strict quality control of equipment in production and before leaving the factory, and a complete quality management system for purchased parts.Customers are always welcome to make videos or come to the factory to know the production status.

---
