US$650.00-15,200.00
|
1 Piece
(MOQ)
|
Basic Info.
Application
Cotton, Rice, Corn, Fruit, Wheat, Soybean, Tubers, Straw
Portable Harvester Type
Side Hanging Type
Certification
QS, GMP, ISO9001:2008, CE
Application Field
Agriculture, Forestry
Name
Rice&Wheat Combine Harvester
Cutting Table Width
2200mm
Working Efficiency
0.65-0.85HEC/H
Dimension(L*W*H)
5450X2520X2870mm
Min Ground Cleaqrance
330mm
Track Ground Pressure
≤35kg/HEC
Engine Manufacturer
Famous Manufacturer(Changchai)
Engine Type
Vertical,Four-Stroke,Water-Cold,Direct Injection
Engine Number of Cylinder
4
Engine Standard Rotary Speed
2600r/Min
Transport Package
Large Cabinet
Specification
5cube 3400kg
Production Capacity
1000pieces/Year
Product Description
Combine Harvester Main Technical Parameters
Advantages: Compact structure, excellent performance, Low ground pressure, high performance in wet or mud land High threshing ability, low broken rate. Low lost rate Thorough clearance with double shakers for re-threshing Famous brand engine with large power and stable performance Main specifications:
| No. | Item | Unit | Specifications |
| 1 | Type | / | 4LZ-6.0B1 |
| 2 | Structure mode | / | Full feeding, crawler type, self-propelled |
| 3 | Engine | Manufacturing company | / | QUANCHAI COMPANY,LIMITED |
| | | Engine type | / | 4C6-100 |
| Structure mode | / | Vertical, inline, water-cooled,4 strokes |
| Rated power | kW | 75 |
| Rated speed | r/min | 2400 |
| 4 | dimensions (length×width× height) | At work | mm | 5980×2660×2855(rape combine) |
| In transportation | 5980×2660×2855(rape combine) |
| 5 | Mass of the whole machine | kg | 3760 |
| 6 | Cutting width | mm | 2000 |
| 7 | Feed rate | kg/s | 6.0 |
| 8 | Minimum ground clearance | mm | ≥315 |
| 9 | Theoretical travel speed | km/h | 2.15~5.28/0~8.7(HST) |
| 10 | Pure field capacity | hm2/h | 0.3~0.5 |
| 11 | Fuel comsumption unit area | kg/hm2 | 21~27 |
| 12 | Type of cutter | / | standard 2 |
| 13 | Type header auger | / | Spiral toothed |
| 14 | Reel | Type | / | Eccentric, spring toothed |
| Diameter | mm | φ900 |
| No. of bars | | 5 |
| 15 | Threshing cylinder | No. | | 1 |
| Type | Main cylinder | / | Axial-flow, rasp-bar |
| Auxiliary cylinder | / | / |
| dimensions (diameter× length) | Main cylinder | mm | φ620×2200 |
| Auxiliary cylinder | / |
| 16 | Cancave type | / | grid |
| 17 | Fan | Type | / | Centrifugal, volute |
| Diameter | mm | φ400 |
| No. | | 1 |
| 18 | Track | Specification (pitch×no. of teeth×width) | / | 90 mm× 53×450mm |
| Distance between tracks | mm | 1250 |
| 19 | Tyre specification | Guiding wheel | / | / |
| Driving wheel | / | / |
| 20 | Minimum radius of pass-by | Turn left | mm | 3300/ 3450(rape combine) |
| Turn right | 3500/ 3700(rape combine) |
| 21 | Type of gear box | / | (HST) hydraulic stepless speed changes or mechanical gear box |
| 22 | Brake type | / | Friction-type hand braking |
| 23 | Type of stalk cutter | / | / |
| 24 | Re-thresher type | / | Plank-tooth |
| 25 | Unloading | / | 360degree auger unloading |
| 26 | Steering mode | | Hydraulic power steering |
| Remarks: | |
| Way of payment: 30% downpayment by T/T before production,70% balance by T/T before shipment. |
| Delivery time: 30days after the receipt of deposit |
102 horsepower engine, enhanced and speedup walking gearbox with large displacement HST, strong power output. The enhanced chassis is equipped with riding gear train mechanism, which is highly reliable.Lengthened and widened special high tooth walking crawler with good trafficability in paddy fields. Conveyor reversing device, easy to clean. For the lodging crops, the reel is strengthened, the elastic force of the elastic teeth is increased, and the volume of the grain tank is increased. The oil tank is enlarged, and the growing threshing cylinder is equipped with two speed changes, which makes the operation efficiency higher.
Product advantage
| | |
| 102 HP and more powerful engine | Optimize the structure and size of the reel to make harvesting easier
| The header adopts double V-belt with strong driving force
|
| | |
Wide teeth + outer height + inner height, special crawler
| Variable diameter increasing threshing cylinder
| Plugin concave screen, quick cleaning and replacement
|
| | |
Increase the cleaning area by 1.3 square meters
| Enhanced traveling drive gearbox
| Riding type, chassis roller
|

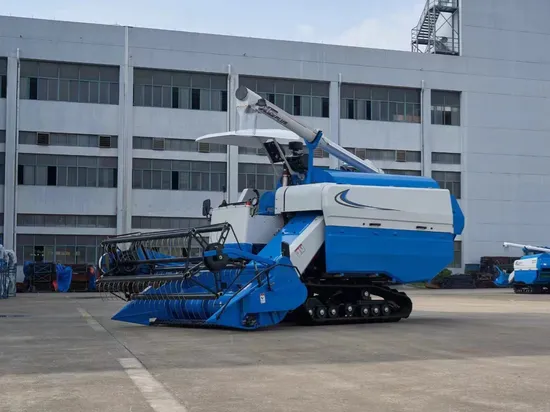

Picture show
Company proflie
Lingke Holding Group is a manufacturing enterprise engaged in R&D, production and sales of high-end non-road machinery and equipment. It was established in 2013. The total planned area of the group is more than 1,00 mu. It is a key investment attraction of the municipal government, a major
provincial project, and a priority project for new and old kinetic energy.
