Ks Pinge 2100V 0.76ufhigh Voltage Microwave Oven Part CH85 Condensator Capacitor AC Capacitor

Product Description

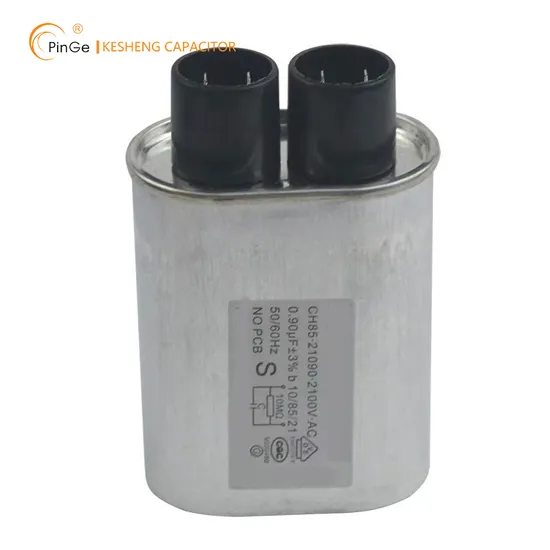

CH85 Microwave Ovens Capacitor

Brand	PinGe	Model	CH85 Capacitor
Rated Voltage	2100V.AC/2500V.AC	Capacitance Range	0.5uF~1.2uF
Certificate	cUL,TUV, BIS, CQC	Application	Compact Micro-Wave Oven, OTR-MWO,Commercial MWO
Type	oil filling and resistor inside	Operation Class	Class S
Tolerance	±3%	Operating TEMP.	-10ºC~85ºC
Terminal	Tab	Shape	Oval
Package Type	Carton	Package	50PCS/CTN
Supplier Type	Original Manufacturer	Place of Origin	Guangdong, China
AC test voltage terminal to terminal	4.3*Un(VDC)/10s	Insulation voltage terminals to case	2.4*Un+1200 (VAC) /1s
Dissipation factor tanδ at 20 °C	≤0.001(1KHz)	Rated frequency	50/60 Hz

Features and use The capacitor is applied in industry and Microwave Ovens etc.The product is composite dielectric structure by oil immersion.
The capacitor has advantage of good heat dissipation,high pressure value,small dimension,small dielectric loss,high capacity precision,and it can be work stably with high voltage for long time,it is safe and reliable.
