China Full Automaticoil 200L 300L 400L 500L Drum /Pallets Blow Molding Making Machine

Product Description

Company Profile

Product Description

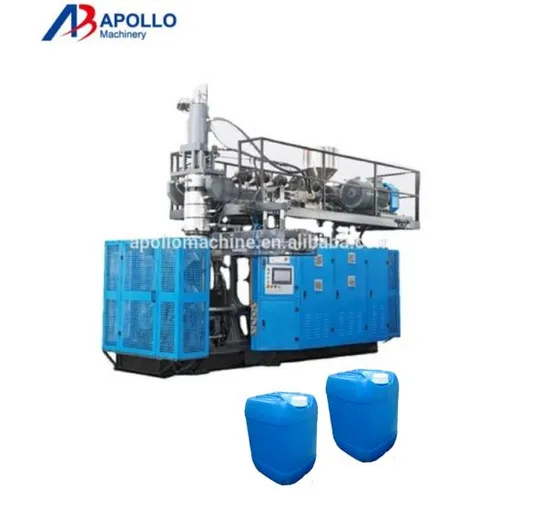

Tanks Extrusion Blow Molding Machine ABLD150:
ABLD150 plastic drum making machine was specially designed for making plastic water tanks,chemical drums,plastic cans, lubricant oil drums,plastic drums, plastic toys and other plastic containers not over 3000L.
The features of this machine:
(1)It is suitable for producing PE,HDPE,PP so on,plastic containers and bottles in all shapes are available,the max.product volume is up to 3000L.
(2)Single station single die head design,very easy to operate and maintenance.
(3)Most components of the blow moulding machine are from famous world brand.
(4)Fully automatic process with low power consumption,high efficiency,quick and safe operation,easy for maintenance.
(5)Accumulation die head, 100 point parison controller equipped.
(6)Bottom blow technology make the product perfect.
(7)Auto lubricant system controlled by PLC.
(8)Equipped with germany servo system , can save more than 40% power and very stable .
Product Parameters
Technical Parameters: ( ABLD150)

Max. Product volume	3000 liters
Screw diameter	150mm
Screw L/D ratio	33L/D
Screw drive power	132KW
Screw heating capacity	36 KW
No.of heating zone	6 zones
Output of HDPE	620-840KG/H
Oil pump drive power	75 KW
Clamping force	1800 KN
Max.size of mold	1730 X 2200mm
Mold stroke	1000-2700mm
Max.die diameter	1000mm
Blowing pressure	1.2 mpa
Air Volume	6 M³/MIN
Cooling water pressure	0.3mpa
Water consumption	240L/MIN
Size of Machine	11.5x7.5x8m
Weight of machine	72 ton

Detailed Photos
Certifications

Related product
FAQ
1. Q: -Can the machine customized only for my products?
A: - Yes, most APOLLO machines can be customized as per clients' requirements, including the structure special design and brand of parts special request.
2. Q: -How about the molds ?
A: - APOLLO has its own mold manufacture company for injection and blowing mold. Machine and mold can be tested for samples and smooth matching before shipping. Mold raw material is various for optional.
3. Q: -What is the business item for this project ?
A: - a. Delivery Date: within 45 working days after receive the deposit and samples or drawing confirmed by buyer and APOLLO .
b. Port of Loading: SHANGHAI, CHINA.
c. Payment: 30% TT deposit, balance before shipment or 100% irrevocable L/C at sight.
d. Container needed: One 20GP container.

---
