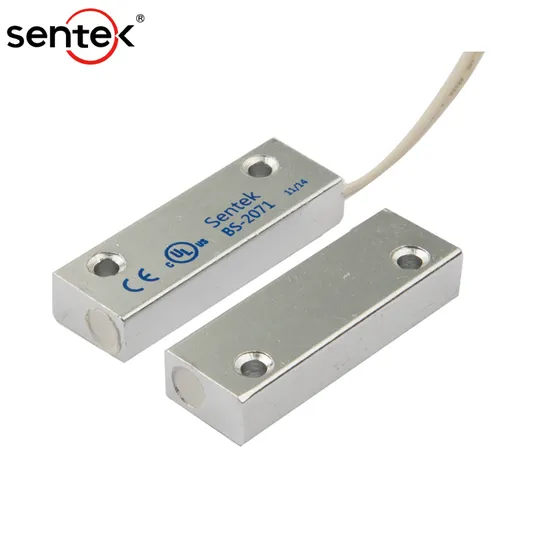

Surface Mounted Door Magnetic Reed Switch Sensor Nc or No Optional (BS-2071)

Negotiable 1,000 Pieces (MOQ)

Basic Info.

Model NO.
BS-2071
Certification
CE, UL
Material
Metal
Wire
18"#22AWG
Optional
Jacket Cable and Longer Leads
Loop Type
Closed
Reed Form
N/O
Transport Package
box/carton
Specification
1.97"LX0.67"WX0.39"H
Trademark
Sentek
Origin
China
HS Code
8531901000
Production Capacity
1000000PCS/Year

Product Description

Specification:
Style: Metal Surface Mounted Security Door or Window Magnetic Electrical Contact Switches NC or NO Optional Item: BS-2071
Magnet: Rare Earth Magnet Color: Metal
Wire Range Cable: #20~#24AWG Loop Type: Closed
Reed Form: N/O Colsed Gap[Inch(mm)] 1.5(38)
Depature Gap[Inch(mm)] 1.65(42) Maximum InitialContact Resistance(Ohm) 0.150
MaximumContact Rating(W) 10 Maximum Switching Voltage(VDC/VAC) 100
Maximum Switching Current(A) 0.4 Certificate CE, UL
Metal Surface Mounted Security Door or Window Magnetic Electrical Contact Switches NC or NO Optional

Dimension (mm):
Product Features:
*Metal magnetic contacts
*Ideal for commercial application or industrial use
*Screws included
*Standard 18"#22AWG leads
*2 conductor jacket cable on request(BS-2071J)
*Armored cable on request (BS-2071AR)
*Longer leads available
*Resistor,Diode and Supervisory Loop available on request
Order Information
Part
Number
 Loop
Type
 Reed
Form
 Closed Gap
[Inch (mm) ]
 Depature Gap
[Inch (mm) ]
 Maximum Initial
Contact Resistance
(Ohm)
 Maximum
Contact Rating
(W)
 Maximum
Switching Voltage
(VDC/VAC)
 Maximum
Switching Current
(A)
BS-2071(AR)
 Closed
 N/O
 1.5(38)
 1.65(42)
 0.150
 7.5
 100
 0.4
BS-2071A(AR)
 Open
 N/C
 11/4(32)
0.150
 3
 30
 0.2
BS-2071C(AR)
 Closed & Open
SPDT
11/4(32) 0.150
3
 30
0.2
BS-2071D(AR)
 DPDT
2SPDT
11/4(32) 0.150
 3
 30
 0.2
UL APPROVED: BS-2071(AR)
