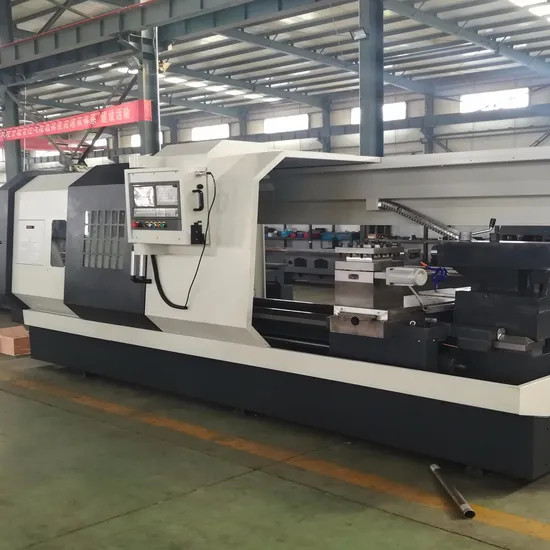

Large Metal Turning CNC Lathe Ck6163e CNC Turning Lathe Cutting Pipe

Product Description

Product Description
CNC LATHE INTRODUCTIONThe series CNC lathe is universal standard automatic machining equipment for metal processing, suitable to process shaft and plate workpiece, with the main characters such as reliable structure, easy operating and high accuracy, this series lathe machine is mainly used for turning the internal and external cylindrical surface, conical surface and other rotating surfaces, as well as turning various type of threads etc.FEATURESOne-piece bed adopts high strength iron to ensure rigidity and precision Ultrasonic frequency quenched guide-ways ensure good wear-resistance Carriage and guide-way contact surface use Turcite B to maintain accuracy
FEATURES 1. One-piece bed adopts high strength iron to ensure rigidity and precision 2. Ultrasonic frequency quenched guide-ways ensure good wear-resistance 3. Headstock gears hardened and ground to achieve precision and low noise

STANDARD ACCESSORIES	OPTIONAL ACCESSORIES
Siemens controller, NC turret, automatic lubrication, coolant pump, semi-shield	Fanuc or other brand CNC controller, hydraulic or power turret, hydraulic tailstock, full-shield

SPECIFICATIONS	Units	CK6163E	CK6163E	CK6180E	CK6180E
		Manual	HYD.	Manual	HYD.
Swing over bed	mm	630		800
Swing over cross slide	mm	350		520
Distance between centers	mm	1000/1500/2000/3000/4000/5000/6000		1000/1500/2000/3000/4000/5000/6000
Guideway width	mm	550		550
Max. load capacity	T	3		3
Spindle bore	mm	104		104
Spindle bore taper	-	Metric φ120/MT5		Metric φ120/MT5
Spindle nose type	-	C11		C11
Spindle speed steps	-	VF. 3 steps	HYD. 4 steps	VF. 3 steps	HYD. 4 steps
Spindle speed range	rpm	10-1000	17-1000	10-1000	17-1000
Chuck	mm	φ315 3-jaw manual		φ315 3-jaw manual
Turret/tool post	-	Electric 4 position		Electric 4 position
Tool size	mm	32 x 32		32×32
X axis travel	mm	320		420
Z axis travel	mm	850/1350/1850/2850/3850/4850/5850		850/1350/1850/2850/3850/4850/5850
X axis rapid traverse	mm/min	4000		4000
Z axis rapid traverse	mm/min	6000		6000
Tailstock quill diameter	mm	φ100		φ100
Tailstock quill taper	-	MT5		MT5
Tailstock quill travel	mm	250		250
Main spindle motor	kw	11		11
Coolant pump motor	kw	0.125		0.125
Weight for 1000	kg	3700		3900
Weight for 1500	kg	4100		4300
Weight for 2000	kg	4500		4700
Weight for 3000	kg	5300		5500
Weight for 4000	kg	6100		6300
Weight for 5000	kg	6900		7100
Weight for 6000	kg	7700		7900
Dimension for 1000	mm	3300x1750x1850		3300x1850 x1900
Dimension for 1500	mm	3800x1750x1850		3800x1850 x1900
Dimension for 2000	mm	4300x1750x1850		4300x1850 x1900
Dimension for 3000	mm	5300x1750x1850		5300x1850 x1900
Dimension for 4000	mm	6300x1750x1850		6300x1850 x1900
Dimension for 5000	mm	7300x1750x1850		7300x1850 x1900
Dimension for 6000	mm	8300x1750x1850		8300x1850 x1900

Detailed Photos

CNC : GSK980TC3, servo motor,Servo driver 320mm Manual 3 jaw chuck Manual tail stock 4 station electric tool turret Automatic lubrication system, cooling system.Lighting system Standard packing list, Tool box 380v 50hz 3phases Sample Products

Company Profile

Zaozhuang Panda CNC Machinery Co., Ltd. is an enterprise specializing in the production of various types of rotary joints and metal processing machinery. The plant covers an area of 100,000 square meters, with a construction area of 80,000 square meters. For decades, we have been providing all kinds of CNC milling machines, CNC machining centers, CNC lathes, lathes, milling machines, drilling machines, sawing machines, grinding machines, as well as metal processing machinery products such as tools and mechanical accessories for all walks of life in the national economy. Our machines are very popular overseas and exported to more than 100 countries and regions, and our machines are loved and welcomed by customers,Have obtained CE, ISO, TUV, SGS, EAC and other certificates. We have more than 20 years of experience in supplying these machines to more than 100 countries, and our machines are loved and welcomed by customers at home and abroad.
Why choose us:
Factory with ISO,SGS ,CE, EAC, TUV, BV, ERP, SONCAP certificate.
More than 80000m² of the factory with more than 200 workers.
Strictly QC control with more than 24 steps testing processes.
30+ years CNC machine manufacture experience.
24 hours online service at any time.
Support ODM OEM.
Trade with customers in more than 150 countries around the word .
Cooperate with the Famous Brand , such as SIEMENS, FANUC , SYNTEC ect.
Warranty time is 2 years

Certifications


Cooperated Brands


FAQ


1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us at any time.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
100% Irrevocable LC at sight .
5: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
5: What's the MOQ?6.. What levell of series fo you provide?--->Your inquiry will be replied within 24 hours.
7. Technology support by providing operation?training videos?
---->Professional after-sales service team. We can Provide Technical support online service and Machine operation Video. We can provide on-site training and commissioning Video. We can Provide Spare parts replacement and repair service.
Give reasonable offers with the best quality.
8. What is our advantages?----> Competitive price: We can meet your budget and best-selling business very well. OEM Accepted: We can produce customized design. Good Service: We treat clients as friends and provide problem solving anytime you need. Good Quality: We have strict quality control system. Good reputation in the market. Fast & Delivery: We have big discount from forwarder (Long-term Contract).
9. Can you customize the machine for the customer?---->Yes. We can, if you need customized services, please contact us
10.What is your delivery time?
---->The delivery depends on different machines with different configurations. Please contact us to confirm it is in stock or not.
11.Agents Wanted:---->We have strong partnerships in Europe, America, South America, India, Southeast Asia and South Africa. We also supply OEM service, and we are looking for agents in these areas. In the further, we want to develop SCHULER to a global brand. Wherever you are from, we are looking forward to explore new market with you.
We want to know:
1.What's your Industrial Voltage?
2.We strongly suggest you to tell us size, material of your workpiece for our evaluation, if possible, better to send us workpiece drawing, so that we can recommend you most suitable model!
3.If need CIF Price, please kindly tell us the port of destination.

---
