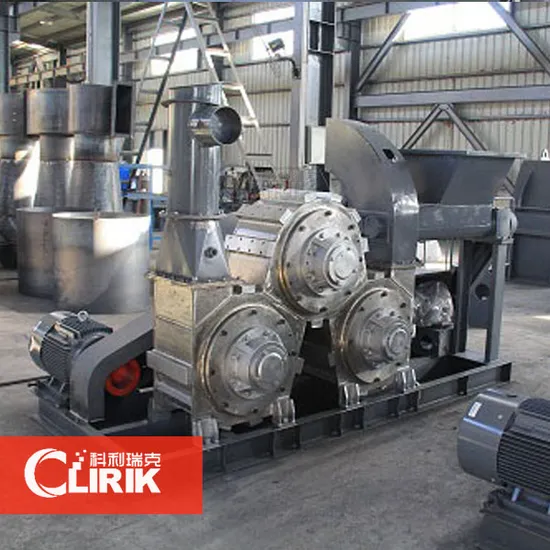

Calcium Carbonate Coating Machine for Limestone Kaolin Graphite Calcite Barite for Stone Powder Modification Production Line

Product Description

Product Overview
Technical dates of powder coating equipment/powder surface coating equipment:

Model	Main Power	Blower Power	Speed of Shaft	Capacity	Weight	Overall Dimension
CLG-200D	11kw	2.2kw	5700 r.p.m	40-150kg/h	1t	3200*600*2200mm
CLG-3/300	3-18.5kw	5.5kw	4500 r.p.m	500-1800kg/h	3t	5800*1800*5600mm
CLG-3/600	3-37kw	15-22kw	2700 r.p.m	2000-4000kg/h	10t	11200*3100*6200mm
CLG-3/900	3-75kw	45kw	2000r.p.m	4000-7000kg/h	20t	21000*3800*6500mm

Structure and Special feature of powder coating equipment/powder surface coating equipment:
The machine is made of following parts:
A. Hopper: Materials enter into hopper from silo or bags. Humidity of feeding materials should be less than 0.5%
B. Conveying device: With double screws and adjustable speed to ensure the stability of material flow
C. Agent adding system with temperature control:
Automatic Temp. Control, free setting of melting temperature, suitable for various modifying agents in both solid and liquid form.
D. Main machine: Consisting of 3 modifying rollers in triangle form, compact design, high efficiency and stable running.
E. Cyclone dust collector: Diffusion type
F. Impulse type bag dust collector: New generation pleat filter, with the advantage of little space, large filtration area, high dust removal efficiency and easily cleaning.
Introduction of powder coating equipment/powder surface coating equipment:
The powder coating equipment/powder surface coating equipment is widely used in the fields of non-metal stuffing or pigment like plastic, rubber, adhesive, macromolecule materials, high polymer composite, functional materials and dope industries, is an outcome of the development of new and high technology nowadays.
It can not only improve the compatibility of both non-organic mineral stuff and organic high polymer, enhance binding force of interfaces, rise the mechanical strength and comprehensive ability, but also increase the stuffing ability of powder, save product cost and add special physical and chemical property to the product to some extent. For resolving the above-mentioned problem in production, this high efficiency equipment CLG powder surface coating machine is recommended by our company as a result of hard research work.
Working Principle of powder coating equipment/powder surface coating equipment:
The powder surface coating system treatment is completed mainly by means of three modifying rollers. The dry powder and dosed agent are put into modifying rollers simultaneously. With high speed rotation, the materials and agent is running in the form of fluidizing vortex. The modification is completed with the heat generated by high speed shearing, colliding and friction among the rotor, stator and the powder.
Company Profile
Our Service
1. one year guarantee for whole machine except for wear parts.
2. 24 hours technical support by email.
3. calling service.
4. user manual available.
5. reminding for the service life of the wearing parts.
6. installation guide for clients from both China and abroad.
7. maintance and replacement service.
8. whole process training and guidance from our technicians.
High quality of after-sales service symbolizes our brand and ability. We pursue not only good quality products, but also best after sales service. Your satisfaction is our final purpose.
Our Company
SHANGHAI CLIRIK MACHINERY CO., LTD located in PUDONG New district of Shanghai china as a professional enterprise, which is specializing in research, manufacture and sales of all kinds of mining equipment. Our company has already formed a full set of modern production line, equipped with intelligent, standardized testing and controlling laboratories, owned a professional team for R&D, production, sales and service.
Our Packing & Shipping
Packaging: Conventional Packaging suitable for long distance transportation.
Shipping: 10-30 working days after receiving the deposit of the devices.
Our activities
Our Certification
Other Products offered

Ultrafine vertical roller mills	High pressure suspension grinding mill	Coating Machine
Finished Size: 600-4500(mesh) Capacity: 3-20(t/h) Pass rate: D50 2 micron	Finished Size: 50-450(mesh) Capacity: 1-28(t/h) Pass rate: D90 30 micron	Used to stone powder modification machine

FAQ
Inquiry Service
Please fill in your need products and your message and please do not forget mail and/or phone if you like to be contacted. We are the professional machine manufacturer in China with 30 years experience. Pls kindly check the following, in order to select a suitable machine, send you specific techinical data, quotation and the solution drawing for you.
1. What is the raw material do you want to process?
2. What is the capacity per hour do you need?
3. What is the raw material input size?
We hope you can tell us these details, we will give you the best quotation, technical data and solution drawing ASAP, thanks. Your satisfaction is our greatest pursuit, we would like to sincerely for your service!
We look forward to your inquiry!

---
