Automatic Ultrasonic Single Double PE Coated Paper Cup Making Machine

Product Description

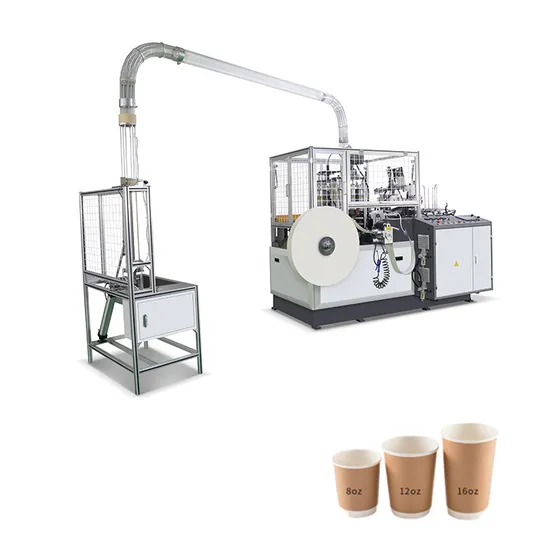

Product Description The machine uses a cylindrical indexing cam with only one aluminum plate to complete the cup making structure, which makes the machine faster and smaller. It has photoelectric detection,fault alarm, counting and other functions. Through automatic transmission, paper feeding, sealing (adhesive cup type), oiling, punching, bottom turning, heating, knurling, crimping, cup collection and other continuous processes, it is to improve the production of beverage cups, tea cups, coffee cups, and advertisements. Ideal equipment for paper cups and tasting cups, with a production capacity of 70-90 pcs/min.
Features: 1. (Multiple paper feeds) Three paper feeds and multiple mediations to avoid unevenness on both sides of the paper cup. 2. (Gutterwheel) The inside of the machine uses a groove wheel to connect more closely, and it is not easy to loosen during the operation of the machine. The work is more precise. 3. The machine's single-disk bottom punching and cup-up stroke offset the paper jam and bottom turning failures! Make the machine more perfect and greatly increase the production output. 4. The whole machine automatically time-controls the oil lubrication, which saves the trouble of adding lubricating oil manually and makes the machine automatically reach the best operating state. 5. Full-time use of cam operation, replacing the previous connecting rod principle, reducing failures and increasing production speed. 6. Cylindrical cams and grooved wheels make the machine more stable and wear-resistant for a long time under high-speed operation. Specification

Cup size	1.5-16oz(different size mold exchanged)
Speed	70-90pcs/min
Power	380V 3-phase 50HZ
Suitable Materia	160-350g/m2(single side PE or two side PE-coated paper)
Total Power	3.5KW
Weight	2500KG
Package size	2250*1340*1900mm
Power source	8KW

Packing and Shipping Stable wooden package protects machine from strike and damage.
Wound plastic film keeps machine out of damp and corrosion.
Fumigation-free package helps the smooth customs clearance.
The big size machine will be fixed in container without package. About Us
FAQ 1. Q: What is the power supply of the machine? A: The standard power supply in china is 380V, 3P, 50Hz. We also can customized accordingly. 2. Q: What information should the customer provide to get an accurate quotation from us? A: The customer should provide the related technical requirements, drawings, pictures, industrial voltage, planned output, etc 3. Q: What is the payment term A: The payment term is 30% down payment, and 70% before shipment(T/T mode), we also accept other payment term, like L/C, DA, D/P etc 4. Q: What is the delivery time? A: Normally the delivery time of the machine is 30 days after receive down payment. 5. Q: What is the warrantee period of the machine? A: The warrantee period is one year since the date of B/L.

---
