130mm Big Bore Heavy Duty Lathe Machine CW61180B Lathe Turning Machine

Product Description

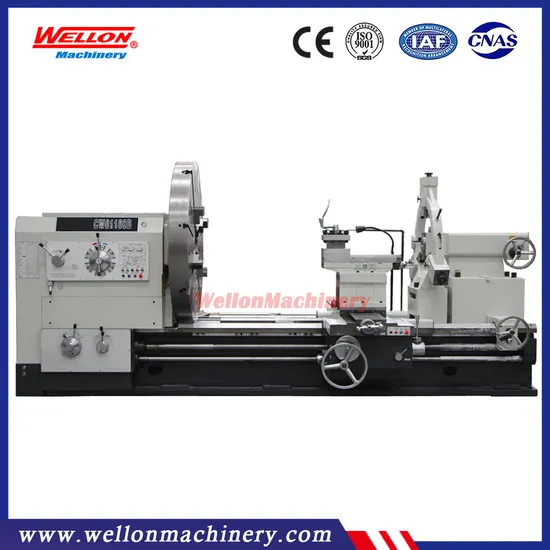

130mm Big Bore Heavy Duty Lathe Machine CW61180B
Product Parameters

Performence Feature:
This lathe are suitable for turning internal and external cylindrical, conical and swing surfaces as well as various metric, inch, module and
diametric pitch threads.They can also be used for broaching oil grooves and keyways. There are also following features:
1. Box type internal structure, of high rigidity , with hardened guideway. The precision is stable.And can carry out strong force cutting.
2. On apron,there is a device, operated by a single lever, used for rapid traverse of the carriage.
3. The saddle guideway is glued by 'TSF' soft belt wear resisting materials.
4. The top slide can be used independently for turning of short cone, in combination with longitudinal feeding, it can also turn long taper surface.
Technical parameter:

Specifications	unit	CW61180
Max swing over bed	mm	1800
Max swing over carriage	mm	1380
Center distance	mm	1500/200/3000/6000
Spindle bore and nose	mm	130 C15
Bed width	mm	755
Spindle taper	mm	MT6
Spindle speed and steps	r/min	CW:21 steps 3.15-315 CCW: 12 steps 5-400
4 jaw chuck diameter	mm	1000
Longitudinal feed and range	mm/r	56kinds 0.1-12
Traverse feed and range	mm/r	56kinds 0.05-6
Rapid moving speed	mm/min	3740
Lead screw pitch	mm	12
Metric thread	mm	44kinds 1-120
Inch thread	t/in	31kinds 24-1/4
Module thread	mm	45kinds 0.5-60
Diametral pitch thread	DP	30kinds 56-1
Cross slide travel	mm	700
Top rest travel	mm	300
Tool post		4 positions
Tool shrank size	mm	45X45
Tail stock sleeve dia	mm	160
Sleeve travel	mm	300
Sleeve taper		MT6
Main motor power	kW	22
Rapid feed motor power	kW	1.5
Coolant pump motor power	w	125
Machine width and height	mm	2250X2150
Machine length
1500	mm	4600
3000	mm	6100
4000	mm	7100
5000	mm	8100
6000	mm	9100
Machine net weight
1500	kg	13100
3000	kg	14000
4000	kg	15000
5000	kg	16000
6000	kg	17000
Max loading capacity
1500	kg	6000
3000	kg	6500
4000	kg	7000
5000	kg	7500
6000	Kg	8000

Standard accessories:
4-jaw chuck
4-station tool holder
Steady rest
Follow rest
Dead centers
Reducing sleeve
Coolant system
Halogen work lamp
Operating tools
Operator Manual
Optional accessories:
Digital readout
Chuck guard
Live center
Company information

Packaging & Shipping
FAQ

1: What's your main products of your company?
A : We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,
Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
2:What kind of controlsdo you use on machines?
A :Siemens,GSK ,Fanuc etc. You can choose according to your requirements .
3. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
4 : How can I choose the most suitable machines ?
A : Please tell me the model or parameter you are interested in, we can provide you with the best price and quality.
You can also send us product pictures and we will choose the most suitable machine for you.
5 : Do we receive any updates while machine is in the manufacturing process?
A : Of course. The progress of the machine will be updated regularly and sent to you.

---
