Gasoline / Diesel / Fuel / Petroleum Oil / Chemical Marine Loading Arm

Product Description

Product Description

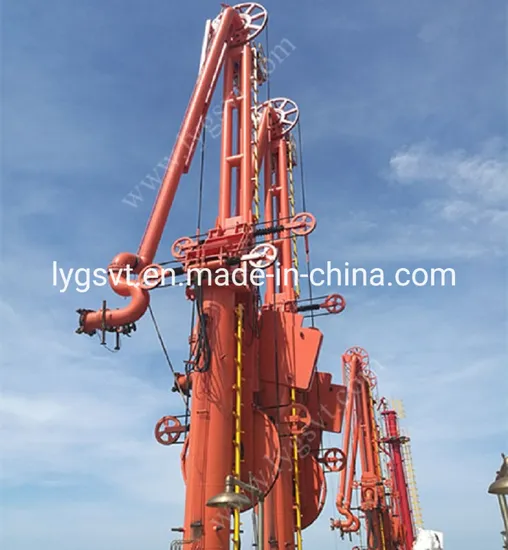

Marine Loading Arm

A Marine Loading Arm is an articulated pipe system for the transfers of liquids or gases. This may be operated manually or hydraulically. A marine loading arm comprises several components namely: base riser, inboard arm, outboard arm, balancing assembly, supporting structure, and operating system.
The articulation is assured by swivel arrangements.These arrangements (or styles) allow for complete movement in all planes.
We design and manufacture a wide range of Marine Loading Arms to load and unload almost any liquid and compressed gas product from river barges, ships and ocean going super tankers.

AM63- Single Pipe Marine Loading Arm with Branched Support Structure

Product Parameters

Product Name	Marine Loading Arm
Service Product	Oil, Gasoline, Diesel, LPG, and all kinds of liquid
Nominal Diameter	DN150 ~ DN600 (6" to 24")
Design Pressure	-0.08 Mpa ~ +2.5 MPa
Design Temperature	-196°C~ +250°C
Pipe material	Carbon steel, stainless steel, low-temperature steel, line with PTFE
Operation method	Manual operated, hydaulic operated
Optional Equipment	Position Monintor system (PMS), Hydraulic power unitis (HPU), Quick Connect/Disconnect Coupler (QC/DC), Unit Control Panel (PLC), Emergency Release System (ERS), etc

Design
The design of the marine loading arm / Land loading arm varies from client's requirements and environment. So the user need to fill the "design datasheet", which include: terminal tidal range, ship's tonnage, liquid handled, pipeline size, pressure rating,
environmental parameters (the wind load, temperature, earthquake loads), etc.
Unless otherwise required by user, the design environment parameters of LYGSVT marine loading arm are as follows:
• Design wind speed: static (stowed) state: ≤55M/S
• Design wind speed: ≤ 16 M/S
• Earthquake resistance coefficient: 0.3 G
The total length of this marine loading arm can reach 30 M
Vessel Tonnage: 50000 tons
Operating Mode: Manually or Electro-hydraulically operated Detailed Photos

Packaging & Shipping


After Sales Service
LYGSVT provide On-site Service and After-sales Service for installation, commissioning, maintenance, automatic system upgrading for all our products. The warranty period will be 12 months from date of startup or 18 months after delivery, whichever happens first.
Company Profile
Lianyungang Saiweite Fluid Equipment Co., Ltd. is located in the east bridgehead of the new Eurasian Continental Bridge -Lianyungang, China. Our company specializes in the design, manufacture, sale and installation of Land Loading Arm, Marine Loading Arm, Internal Floating Roof, Floating Suction Unit, Folding Stairs and Platform, Gangway Tower, Automatic Quantitative Loading System, Shell, etc.
Our Services & Strength
We have professional technical personnel engaged in mechanical design and engineering construction for many years, and has perfect quality assurance system. We strictly perform the ISO9001 Quality Management Systems, from design, procurement, production, sales and after-sale service. Our company are fully equipped with various types of processing, welding, testing equipment and special processing equipment, and we set up a professional installation and after-sales service department, providing customers with worry-free technical support and after-sales service.

---
