Diamond Multi Wire Sawing Machine CR600 for Arc Shape Metal

Product Description

Product Description

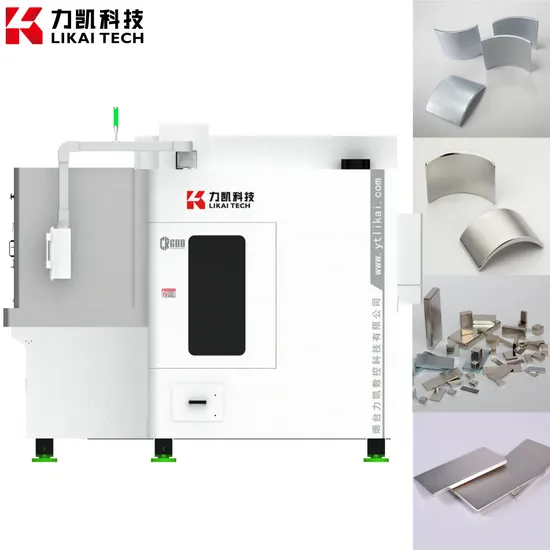

CR600 Multi-wire Saw
CR600 Multi-wire Saw is designed to meet the cutting demands of arc shape in the field of rare earth permanent magnet. The double-station design with narrow material plates can meet customers' requirements on capacity, at the same time significantly improve cutting accuracy.
Product Features
>Double Workstation
The machine adopts double-station design and is able to cut two plates materials at the same time.
>Optimized Pulley Design
8 pulleys design can reduce wire breakage rate and achieve convenient wire winding.
>Stable Wire Web
The rollers and wire spools adopt cone-positioned structure with high accuracy and high rigidity to control wire web shaking.
>Save Labor and Time
The roller auxiliary disassembly bracket can effectively reduce the labor intensity and disassembly time.
>Easy Operation
The cutting room is equipped with electric lifting structure and open on 3 sides for easier operation and maintenance.
>Advanced Control System
Arc compensation function and wire break memory system.
Cut Samples

Product Parameters

Detail	Parameter
Model	CR600
Maximum work size	70mm*600mm*120mm×2
Workbench qty	2
Roller out diameter *Workable width	(φ145±10mm)*610mm*4
Wire diameter	φ0.12mm-φ0.20mm
Wire Spool Storage	40km(φ0.25mm)
Maximum running speed	1200m/min
Travel of workbench lifting	180mm
Travel of workbench translation	30mm
Cutting method	Vertically upward movement
Cutting feed speed	0.1-99.9mm/min
Cutting Fluid	Water--based cutting fluid or cutting Oil
Fluid Storage	800L
Fluid flow rate	200L/min
Power Supply	Three-phase 380V 50Hz
Rated power	37kw
Air supply	Adopting water-based cutting fluid, the air pressure is more than 0.4MPa.
SizeL*W*H	3300mm*2100mm*2800mm
Weight	6500Kg

About Us
FAQ
1. What Materials Could The Multi-Wire Saws Cut?
Our multi-wire saws can cut all kinds of hard and brittle materials such as Sapphire, Quartz Crystal, Optical Glass, Magnets, Ceramics, Silicon Wafers, Silicon Carbide, Precious Metal, etc.
2. What's The Size Range Of The Cut Product?
The maximum diameter of the cut material is up to 1000mm.
The minimum thickness of the wafers after cutting is 0.1mm.
3. What's The Cut Accuracy Of Multi-Wire Saws?
±10μm. It's subject to the cut material, please consult us for actual data.
4. Which Countries The Equipments Have Been Exported To?
The USA, UK, Russia, Japan, Brazil, Korea, India, Singapore, Taiwan of CHINA.

---
