Product Details
Product Description
Product Description

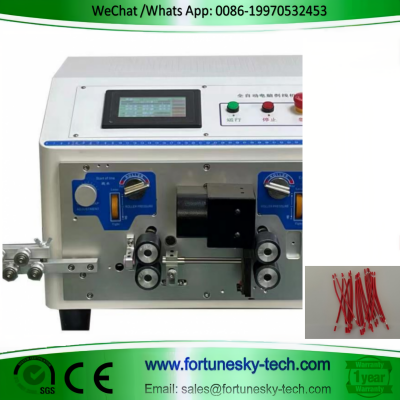

Introducing the JT-501: Your High-Volume Wire Processing SolutionThe JT-501 automatic dual wire stripping machine is a game-changer for high-volume wire processing. This versatile machine tackles a wide range of wires, delivering efficiency and precision for various applications.
Intelligent Control and User-Friendly Design:
Smart Operation: The cutting-edge 32-bit intelligent control system simplifies operation with a user-friendly touchscreen interface. Store hundreds of settings for quick retrieval, saving you time and setup hassle.
Wide Wire Compatibility: Handles a variety of wires, including electronic wires, PVC wires, braided wires, silicone wires, high-temperature wires, Teflon wires, and insulated wires.
Adjustable Precision: Achieve accurate results with adjustable cutting and stripping lengths to meet your specific needs.
Boosting Productivity:
High-Speed Processing: Process 3000-5000 wires per hour, ideal for large-scale production environments.
Compact Footprint: The compact design saves valuable workspace.
Enhanced Efficiency: Additional features like automatic shutdown, wire infeed/outfeed, and timing start streamline your workflow.
Technical Specifications:
Model: JT-501
Dimensions: 420mm x 345mm x 297mm
Weight: 28kg
Display: 4.3-inch Touchscreen
Power Supply: AC175V-250V, 50/60Hz
Power Consumption: 120W-220W
Cutting Length: 0.1mm-99999.9mm
Stripping Length: Head: 0.1-50mm, Tail: 0.1-30mm
Cutting Core: 0.1-2.5mm²
Cutting Tolerance: 0.002 x L(mm)
Intermediate Stripping: 13 positions
Conduit Diameter: 1.5mm-9mm
Tool Material: Tungsten Steel/Imported High-Speed Steel
Drive Mode: Four-wheel Drive
Wire Stripping Rate: 3000-5000 strips per hour (adjustable)
Wire Pressure Adjustment: Manual Pulley Adjustment
Pulse Equivalent: 1 pulse = 1 step
In-line Error: 0.02mm
Blade Motor Accuracy: 0.03mm per step
Inlet and Outlet Motor Precision: Silent hybrid stepper motor (0.1mm per step)
Additional Features (Optional): Automatic shutdown due to lack of wires, automatic outgoing wires, automatic incoming wires
The JT-501 is a powerful solution for high-volume wire processing. Its intelligent control system, user-friendly design, and efficient features make it ideal for various applications, ensuring accurate and productive results.
>>
