New Model HDPE 5L Household Bottles Blower Machine

Product Description

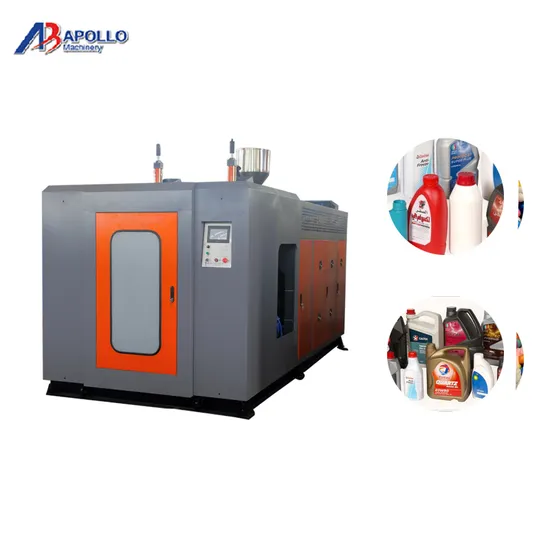

Automatic Blow Molding Machine (ABLB75)
ABLB75 extrusion bottle blow molding machine was specially designed for making plastic water bottles, lubricant oil bottles,detergent bottles , plastic toys and other plastic containers not over 8L.
The features of this machine:
(1)It is suitable for producing PE,HDPE,PP, PVC,PETG,PS so on,plastic containers and bottles in all shapes are available,the max.product volume is up to 8L.
(2)Single station single die head design,very easy to operate and maintenance.
(3)Most components of the blow moulding machine are from famous world brand.
(4)Fully automatic process with low power consumption,high efficiency,quick and safe operation,easy for maintenance.
(5)Multiple screw available for double layer or tranparent liquid lever line.
(6)Auto deflashing device available,can remove the extra parts of bottles.
(7)Auto lubricant system controlled by PLC.
The main components of the machine. ( ABLB75 )

Electronic Part
Name	Trader
Microcomputer Control System	Japanese Mitsubishi
Temperature Controller	Japanese Mitsubishi
Auxiliary Relay	OMRON
contactor	Schneider from France
Electric Moter	Simens Bede
Servosystem	Delta
Power Source	TAIWAN REGION, MEANWELL
Transducer	ABB
Hydraulic Part
Name	Trader
Oil Pump	TAIWAN REGION,HIGH-TECH
Valve	JAPAN YUKEN
Oil pump and Connection	JAPAN YUKEN
Sealed Part	HALLITE
Air Control System
Name	Trader
Cylinder	AIRTAC
Air Valve	AIRTAC

Technical Parameters: ( ABLB75 )

Max. Product volume	8 L
Output capacity	800PC/H
Screw diameter	75MM
Screw L/D ratio	24 L/D
Screw drive power	22 KW
Screw heating capacity	5-6 KW
No.of heating zone	4 ZONE
Output of HDPE	100KG/H
Oil pump drive power	7.5 KW
Clamping force	80 KN
Max.size of mold	400×450MM
Mold stroke	170-520MM
Max.die diameter	180MM
Blowing pressure	0.6 MPA
Air Volume	0.7 M³/MIN
Cooling water pressure	0.3MPA
Water consumption	60 L/MIN
Size of Machine	4.4x2.0x2.7M
Weight of machine	6.3 TON

---
