OEM Customized Pneumatic Nailer Automatic Euro Epal Wood Pallet Nailing Machine

Product Description

Product Parameters
Automatic Wood Pallet Nailing Machine
USA and National Style Wooden Pallets,
PLC & Touch Screen control,Pneumatic Operation
Manual Feeding,Automatic Nailing and Automatic Stacking
Automatic Pallet Lifting Device,Automatic Counting Function on the display interface of the pallet nailing machine.Can store 16 Pallets*2.
Convenient for forklift transport. Save time and space.

Model	PN1300
Wood pallet length	600- 1300mm
Wood pallet width	800- 1300mm
Working mode	Automatic feeding and stacking
Operation mode	Touch screen
Operational mode	Pneumatic operation
Voltage and power	220V/ 2kw Servo motor
Air pressure	0.8MPA
Tank size	0.2 cubic
Nail gun speed	7 times /second
Production effciency	1-2pcs /min
Apply a nail	Less than 90mm
Number of nail guns	3P/ 4P
Weight	2000kg
Size	Host machine 1660*1970*2217mm Stacking 2945*2054*1410

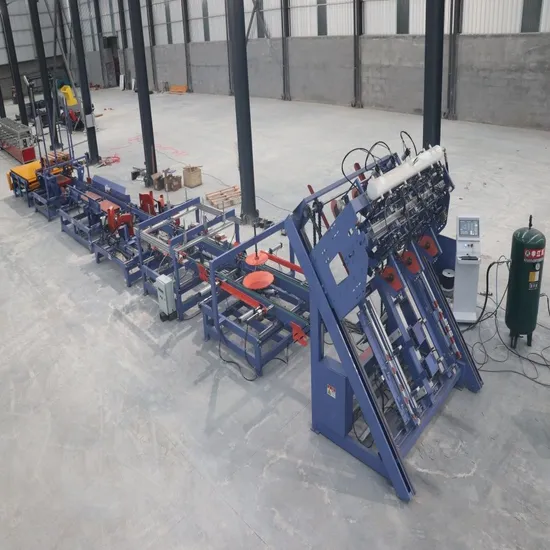

Detailed Photos
Related Machines
Stringer Pallet Nailing Bench

Model	1700	3400
Wood pallet length	600-1300mm	700-1500mm
Wood pallet width	800-1700mm	900-3400mm
Operational mode	Pneumatic operation	Pneumatic operation
Air pressure	0.8MPA	0.8MPA
Production Capacity	30-40pcs /h	20-30pcs /h
Number of beams	3/4	5/6
Weight	440kg	840kg
Size	2250*980*1900mm	4050*1050*2100mm

Pallet Block Nailing Machine

Model	13003/13004
Block width	60-150mm
Board Length	600-1300mm
Stanley Nail gun	70mm*3/70MM*4
Air pressure	0.8MPA
Nail gun speed	4-8 s/time
Motor power	1.1KW Servomotor
Capacity	600P/H
Voltage	220V(Customized)
Operating mode	Touch screen
Production mode	Manual discharge/automatic pin pier
Machine size	2500*1800*2100mm

Euro Block Pallet Nailing Bench

Model	1600	3300
Wood pallet length	600- 1300mm	700-1500mm
Wood pallet width	800- 1600mm	900- 3300mm
Air pressure	0.8MPA	0.8MPA
Production capacity	30-40pcs /h	30-40pcs /h
Number of beams	3/4	5/6
Weight	650kg	950kg
Size	2400*980*1900mm	4000*980*1900mm

Semi-Automatic wooden pallet nailing machine

Model	1500
Wood pallet length	600-1300mm
Wood pallet width	800-1700mm
Feeding mode	Hand pull
Palletizing mode	Automatic
Operational mode	Pneumatic operation
Voltage	380V,480V or other
Air pressure	0.8MPA
Tank size	0.2 cubic
Nail gun speed	7 times /second.
Production effciency	1-2pcs /min
Apply a nail	Less than 90mm
Number of nail guns	3P OR 4P
Palletizing quantity	10P
Weight	2000kg
Overall dimension	3800*2200*2217mm
Package size	2500*2200*2500

Pallet Corner Cutter

Processing size	800-1300mm
Circular saw blade diameter	300mm
Air pressure	0.8MPA
Speed	2900R/Min
Motor power	8.8KW
Control Mode	Integrated with pallet line
Voltage	380V(Customized)
Operating mode	Touch screen
Production mode	Automatic feeding & Cutting
Machine size	2700*2200*1200mm

Pallet Branding Machine Heat Stamp

Processing Size	800-1300mm
Branding material	Copper/die steel
Air pressure	0.8MPA
Branding speed	4-8 s/time with pallet machine speed
Motor power	0.75KW*2
Number of branding	1-6 pcs
Control mod	Integrated with pallet line
Voltage	380V(Customized)
Machine size	2500*2100*1600mm

Pallet Stacker

Model	1300	1400
Processing size	800-1300mm	800-1400mm
Lift control	Hydraulic	Hydraulic
speed	4-8 s/time	4-8s/time
Model power	5.2KW	2.2KW
Control mode	Automatic	electric
Voltage	220V(Customized)	220V(Customized)
Production mode	Automatic chain conveying	Manual electric button
Machine size	3500*2000*1800mm	2000*1600*1200mm

Pallet Conveyor

Model	3000	4000
Length	3000mm	4000mm
Table Length	1600mm
Operating speed	5-6m/min
Motor power	2.2KW
Voltage	380V(Customized)
Pallet production line integrated control,Automatically feeding.

Company Profile
Specialize in research & development, production, sales of sawmills and the relevant fittings SINCE 1988
We have serves 11,000 enterprises and our products have been exported to over 60 countries in the world.
Our wood pallet machines including:
Pneumatic Nailer (Euro/American,Stringer/Block,Manual/Automatic,Horizontal/Vertical)
Pallet Dismantling Machine
Pallet Crushing Machine
Pallet Chamfering,Stamping,Cutting,Turning,Stacking,Conveyor
Pallet Notcher (Single Head/Double Head)
Pallet Boards Cutting,Milling,Stacking,
Block Machine (Crushing,Drying,Glue Mixing,Pressing,Cutting,

Sawmill & Kilns & Pallet & Biomass & Forestry & Recycling
Sincerely welcome worldwide distributors to join us!

---
