Basic Info.
Plastic Type
Thermoplastic
Plasticizing Way
Screw Type
Computerized
Computerized
Certification
CE, ISO9001:2008
Transport Package
Film Packing
Specification
5.8*1.55*2.15
Production Capacity
500sets Per Year
Product Description

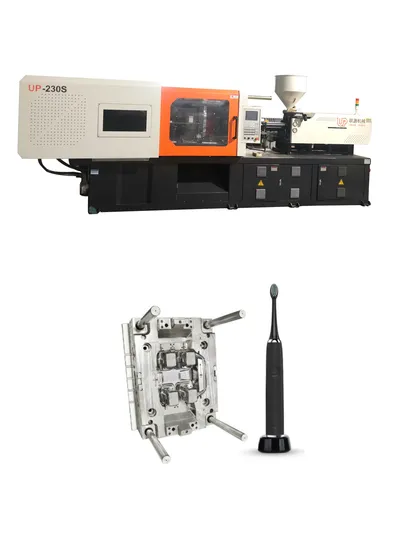

China Servo Injection Molding Machine
Ningbo Union Power Machinery Co., Ltd.
Product Description:
Our China servo injection molding machine offers advanced features to enhance your manufacturing process:
Modulus of Capacitance: Ensuring precise positioning, size, and maximum allowable modulus of capacitance for the injection molding machine guide pillar (Green column).
Nozzle Parameters: Includes spherical diameter, aperture, outer diameter, maximum extension length, and positioning aperture for optimal performance.
Code Mold Parameters: Features code mold hole and slot size for efficient molding processes.
Ejection Mechanism: Provides details on the ejection point position, ejector rod diameter, ejection force, and stroke for seamless operation.
Mold Opening Stroke: Offers information on mold opening stroke and maximum opening distance for precise molding outcomes.
Experience the reliability and precision of our standard injection molding machine manufactured by Ningbo Union Power Machinery Co., Ltd.
| Technical Parameters | Model UP-230T |
| Injection Unit | A | B | C |
| Screw diameter (mm) | 50 | 55 | 60 |
| Shot Volume (cm3) | 461 | 558 | 664 |
| Injection weight (g) | 415 | 502 | 598 |
| injection pressure (Mpa) | 169 | 142 | 121 |
| Screw speed (rmp) | 155 |
| Clamping Unit | | | |
| Clamping force (KN) | 2300 |
| Open stroke (mm) | 475 |
| Max Mold height (mm) | 550 |
| Min Mold height (mm) | 220 |
| Space between tie bars(mm) | 530*530 |
| Ejector force (KN) | 70 |
| Ejector stroke (mm) | 135 |
| Others | | | |
| Pump pressure (Mpa) | 16 |
| Motor/driving power (KW) | 22(21.2) |
| Heating power (KW) | 14.2 |
| Machine dimension (M) | 5.8*1.55*2.15 |
| Machine weight (T) | 6.3 |
| Oiltank cubage (L) | 350 |
>>
