Automatic Upside-Down Gantry Welding Robot Model Gr-Wl500

Product Description

Product Description

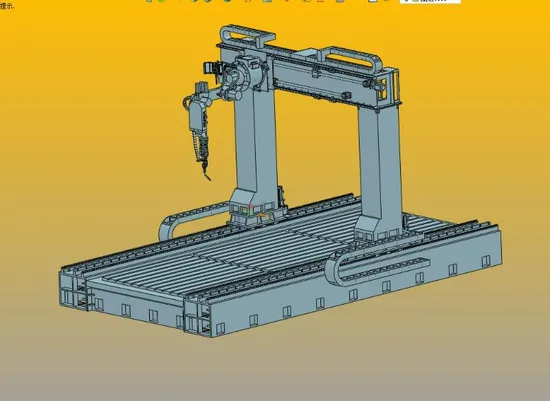

The main components of the upside-down dual-axis mobile device include an X-axis sliding platform, a Y-axis sliding platform, an upside-down arm, a servo drive mechanism and a control system. The robotic arm is installed upside down and expanded in both the X-axis and Y-axis directions, which greatly increases the reach of the robot. It is often used for welding workpieces with large space dimensions and multi-station workpieces for welding and handling.

Technical Parameters:

Model	GR-LM500
Gantry upside down welding robot	Arm span: 2000mm(customizable)
	Camera:3D,With high and low viewing distance functions
	Welding function:Support dual-machine collaborative welding function
	Repeatable positioning accuracy: ±0.05mm
	Voltage: 3 phase 380V
Industrial robot control system
	Support TCP and camera hand-eye automatic calibration function
	Control servo:EtherCAT bus servo
	Operating mode:Teaching, online, remote
	Programmatically:Online teaching, process programming
	Welding wire diameter: 0.8mm,1.0mm,1.2mm,1.6 mm
	Gas flow: 15-20L/min

Detailed Photos


Company Profile

Shandong Farin International Trade co., ltd/Shandong Farin Intelligent Machinery Co., Ltd.(Hereinafter referred to as "Farin CNC Machine"). Farin CNC Machine is a integrating stock group company in researching and developing, manufacturing and trading at Metal processing industry.
Our products including CNC metal drilling and milling machine, Anlge steel making machine, fiber laser cutting machine,laser robot, ultra-high power 10,000-watt laser cutting machine, plate and tube integrated laser cutting machine, automatic loading and unloading laser cutting machine, hand-held laser welding machine and other equipment. They are mainly used for processing angle steel, metal plates, H-beam, channel steel, box steel, round steel, flange plates and so on in power towers, transmission towers, telecommunications tower, steel structures, central air-conditioners, automobiles, household appliances, petrochemicals and construction industry.
With the developing of the brand efficiency in the international market, Farin CNC Machine increase the investment constantly into the R&D department, in ensuring the stably of the existing products, we constantly absorb quintessence experience of the industry, so that ensure our technology always in the advanced position. Meanwhile, Farin CNC Machine constantly strengthen internal management, so as to realize much more benefit and make great development from the advanced manage method.
Therefore, our products has been exported to more than 100 countries and districts, such as Southeast Asia, North America, South America, Africa and Middle East. And get high appreciated from all over the world. Packaging & Shipping

The machine will be packed in wooden boxes or vacuum packed. The packaging of the goods should be moisture-proof, rust-proof, moisture-proof, corrosion-proof and shock-proof, and should be suitable for sea transportation/multiple transportation.

After Sales Service

1. Warranty. --Farin Laser provides a 1-year free warranty and provides customers with timely solutions. 2. Follow up. --Farin Laser will regularly call or visit customers to perform equipment maintenance and archiving. 3. Online services. -Farin Laser will respond to any questions from customers within 1 hour during working hours, 4. Overseas services. --Farin Laser can provide overseas machinery installation, training, maintenance and other services.

---
