Automatic Powder/Granules Mixing Equipment Robust Construction Ploughshares Blender

Product Description

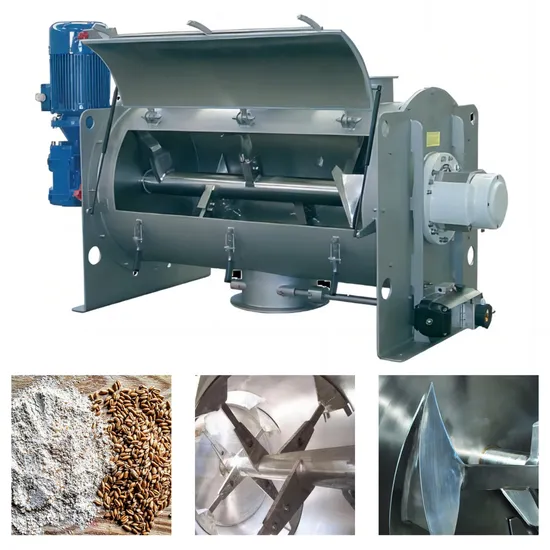

The Horizontal Ploughshare Mixer is a highly efficient single-shaft forced mixing device, meticulously designed with multiple sets of staggered ploughshare agitators. These agitators are precisely installed to eliminate mixing dead spots, ensuring seamless operation. As the mixer operates, the staggered ploughs generate continuous vortex centrifugal forces, causing a dynamic overlap and scattering of material flows. This results in a boiling, convective circulation that achieves rapid and homogeneous mixing of materials.
For cohesive materials such as fibers, damp clumps, or liquid-aggregated powders, the mixer is equipped with high-speed choppers, strategically installed at a 45-degree downward angle on the mixer drum's side. The chopper blades extend into the drum's interior, where materials propelled by the ploughshares enter the chopper's effective range. These materials are then sheared at high speed, enabling efficient de-agglomeration and thorough separation.
The Horizontal Ploughshare Mixer is adept at handling the mixing of solid powders and granules, making it ideal for batch mixing processes that incorporate liquid additions. It finds extensive application in the food, chemical, and construction materials industries. Notably effective in the production of food additives, pre-mixed mortar, composting, sludge treatment, rubber and plastics, and specialty construction materials, its robust cutting action guarantees superior mixing performance.
Product Features
1. Cantilever Shaft Structure, ensuring that the bearings end does not come into contact with the material.
2. The minimal gap between the agitator blades and container wall effectively prevents material adhesion .
3. A standardized agitator drive box ensures stable equipment operation while significantly reducing maintenance costs.
4. Easy-Cleaning : Engineered for rapid and thorough cleaning between batches;
5. Durable Construction : Constructed with robust materials to ensure long-term reliability;
6. Wide Application : Suitable for use across diverse industries such as pharmaceuticals, food processing, chemicals, and cosmetics.
Technical Parameters

Product Model	RPM-0.3	RPM-0.5	RPM-1	RPM-2	RPM-3	RPM-4	RPM-6	RPM-8	RPM-10	RPM-15
Effective Volume (m3)	0.18	0.3	0.6	1.2	1.8	2.4	3.6	4.8	6	9
Maximum Batch Output (kg)	200	300	600	1200	1800	2500	3600	4800	6000	9000
Rotation Speed (r/min)	130	130	85	63	63	42	42	27	33	28
Drive Power (kW)	5.5	7.5	11	15	22	30	45	37	75	90
Equipment Weight (kg)	550	800	1000	1800	2500	3500	4200	4500	5800	7000
Length	2200	2700	3200	4100	4350	4700	5400	5530	5600	6000
Width	900	980	1000	1250	1450	1500	1700	1560	2500	2800
Height	900	1200	1350	1600	1800	1950	2300	2200	2900	3000

Product Display Product Structure Application
The Double Cone Mixer is versatile and can be utilized in industries such aspowder metallurgy, electrical alloys, magnetic materials, battery powders, pearlescent pigments, chemical industry, medical, and food industries
.
About Our Company Shijiazhuang Rongxin Technology Co., Ltd.
was established in 2007 with its headquarters located in Shijiazhuang, the capital city of Hebei Province. Specializing inthe design and provision of material handling automation systems, our company is renowned as a leader in the field. We have earned numerous patents and prestigious accolades, including the titles of 'National High-Tech Enterprise' and 'Innovative Enterprise.'
Our primary products encompass dust-free enclosed feeding systems, sealed conveying systems, pneumatic conveying systems, and tube chain conveying systems. These products are widely used across the metal materials industry, food processing industry, chemical industry, pharmaceutical industry, and new energy industry.Additionally, we proudly operate our own state-of-the-art production facility, equipped with mature and advanced manufacturing lines. This ensures that every piece of our equipment is crafted with the highest quality standards. Company Certification
