| US$110,000.00 | 1 Set (MOQ) |
| Picture | |||

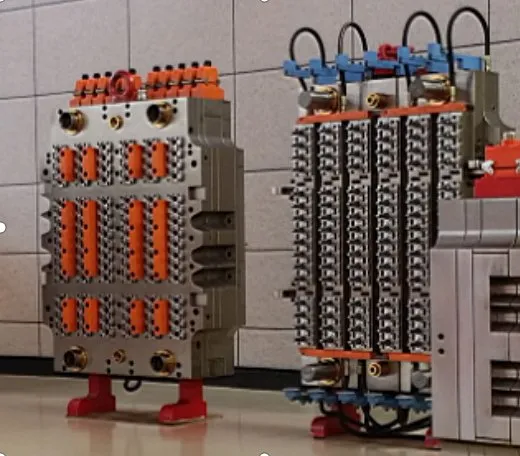

| Specification | Hot runner preform mould Ф28 | ||
| 15g | 18g | ||
| Cavities | 96 | ||
| Mould frame material | P20 steel hardness P20 | ||
| Core,cavity material, | S136 | ||
| Valve Pin | SKD61 made in Japan() | ||
| Heat insulation tip | Dupont company in America | ||
| Heater ring | ROTFIL in Italy ROTFIL | ||
| Runner structure | base runner | 6 points(6) | |
| subchannel | 72 points (72) | ||
| enter runner | 1 gate (1) | ||
| Temperature controller | hot runner temperature coneroller | ||
| Mold outline size (mm) | About 1140×880×680 | About 1140×880×690 | |
| Mould weight | About 4260kg | About 4320kg | |
| Mould structure | Double lock regulable ,air seal, valve gate no cut,, | ||
| Clamping force | TH650/SP-C | ||
| Guarantee period | 1 year | ||
| Mould life | More than 3 million shot injection times 300 | ||
| Cycle times | About 18-20S | About 19-23S | |
| Delivery time | 60 days after the drawing and sum be confirmed 60 | ||
| Unit price (FOBningbo) | |||
| Payment terms | 30% pay in advance, the last 70% pay before delivery 30%,. | ||
| Packaging requirement | standard export packaging. | ||
