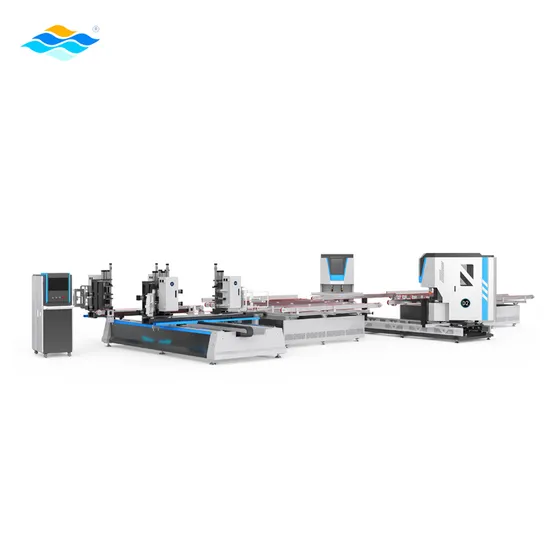

CNC Corner Cleaning and Welding Machine for PVC Machine Production Line

Product Description

Product Description
Technical Parameters

Model	HQ-D
Power supply	380V/50Hz
Total power	15.5Kw
Air pressure	0.6-0.8Mpa
Welding frame size	430*380mm-3000*1800mm
Welding height	20-120mm
Welding width	≤120mm
Corner cleaning height	30-120mm
Corner cleaning width	≤120mm
Overall dimension	14000*5350*1850mm

HQ-D is designed to automate the welding and corner cleaning of pvc doors and windows. The design of the assembly line integrates the three processes of welding, feeding and corner cleaning.
Standard features: Four double-layer welding units can weld two rectangular window frames at the same time, with two corner cleaning units, high production efficiency, and only two people are required to operate, saving labor costs and labor intensity. The upper and lower clamps adopt patented technology, which has high flatness and high long-term application stability. The squeezing tools are made of alloy material and are precision machined after quenching, which is standardized and supports interchangeability. The positioning system adopts high-precision linear square guide rails, and the feeding system is equipped with large inertia servo motors, which ensures high stability and positioning accuracy. Equipped with color touch screen and Siemens PLC, friendly man-machine interface and simple programming. The machine body is welded by thick-walled rectangular steel pipe, which has strong weighing capacity and is not easy to deform. Optional:
1. Variable welding modes: seam, single-sided seamless, double-sided seamless.
2. Clamp preheat to increase the strength of the welding corner.

Detailed Photos
Certifications
Packaging & Shipping
Company Profile
FAQ
1. Are you factory or trading company?
We are a factory with more than 10 years experience in manufacturing door and window equipment.
2. What kind of payment methods do you have?
We support T/T and L/C payment.
3.Do you have customized service?
Yes, we can do customized order.
4. How long is the delivery time? What is your delivery method?
The delivery time of our regular stock machines is 10-15 days, and the shipping method is mainly by sea. Small machines, tools and accessories can be shipped by air.
5. How long is the service life of machine, and warranty period?
The designed service life of our machines can be more than ten years, and all machines have one year warranty except consumables.
6. How to install and use the machine after arrival?
Our equipment has been debugged before leaving factory to meet production standard requirements. We can provide engineers on-site installation training, remote videophone installation guidance, installation and commissioning videos, user manuals and variety methods.
7. How to do the maintenance for machine?
Please carry out daily maintenance, monthly and annual maintenance and inspection for the machine according to the requirements in product instruction manual.
After Sales Service
1. Answer support requests inside a two-hour time frame
2. Most issues are resolved within 24 hours.
3. When needed, a technician is usually sent the next day
4. Most parts are kept in our inventory to reduce idle time
Warranty Policy
Service life of our equipment is more than 10 years. All products are with 1 year warranty.

Installation Instructions
Our equipment has been debugged before leaving factory to meet production standard requirements. We can provide engineers on-site installation training, remote videophone installation guidance, installation and commissioning videos, user manuals and variety methods.

---
