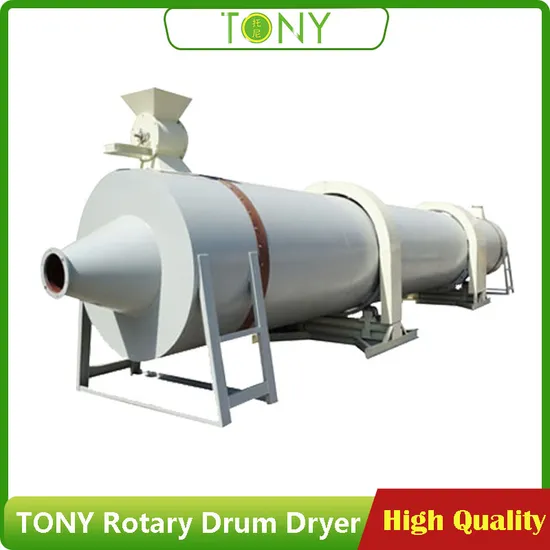

Tony Rotary Drying Machine Drum Dryer for Sale

Product Description

Tony Rotary Drying Machine Drum Dryer for Sale
Our Company
1. Introduction for rotary drum dryer
The rotary dryer is composed of stove, main rotary body,screw conveyor, cyclone separator, air-lock, fan and matched pipes which can realize to reduce the moisture from 60%-10%
Component: Air heater with heat-exchanger, rotary-cylinder dryer, centrifugal shedder.
Scope: wet wood chips, wood sawdust etc.
2.Raw Material for rotary drum dryer Sawdust, wood chips,EFB or other biomass raw materials. Rotary dryer is also widely used for drying materials in the industries of cemet, mine, contruction, chemical, food, compoud fertilizer, etc. Feeding and discharging unit is installed with thermocouple to control drier temperature. The temperature change of drier's feeding end can be indicated by the thermometer to control the inner drier temperature ( generally 250-350°C)
3.Features for rotary drum dryer for wood
a. Air heating system is able to allow highly efficient removal of water from fresh harvested forage, and the maximum durability of dehydrated forage. b. Non-pollution to the target materials guarantees minimal loss of their color, favor, and nutritional ingredients; c. Smoke collector working with the air heating system adopts water-recycled wet-type collecting method, and ensures the exhausted gas to satisfy the environmental protection requirement as well as the lowest water consumption.
4.Structure for rotary drum dryer Rotary dryer is mainly composed of heating device,feeding device, supporting device, cylinder, gears, discharging device and so on. Rotary dryer's main body is a rotary cylinder with a certain inclination, equipped with combustion chamber, exhaust device, dust collector, and feeding device. High-temperature flue gas is used as the drying medium, which enters the dryer under the suction of ventilation device
5.Working principle for rotary drum dryer
Rotary dryer adopts direct flow type of heating with heat soure from firing unit. The material to be dried is pushed back immindiately by spiral board when enters the shell from feeding tank and feeding chute. Because the dryer is installed in slope, material flows to the back end under gravity and rotation force, meanwhile, it is lifted by board repeatedly and thrown down accordingly, which make the material form even curtain, and exchange heat sufficiently with inner the heat flow. In the end, water in the material is dried by repeatedly scattering.
6.Technical parameters of rotary drum dryer

Model	Power(KW)	Evaporate (T/h)
THG10-12	4	02
THG12-12	5.5	0.3
THG15-12	7.5	0.5
THG15-24	11	0.8
THG18-12	11	0.7
THG18-24	15	1.2
THG20-12	18.5	0.9
THG20-24	22	1.5

7.More Details for rotary drum dryer
8.TONY Shipping to All over the World
Our CE
Clients on site

About us:

TONY is a professional manufacturer and exporter engaged in the research, production, sale and service of Biomass wood pellet line, wood pellet mill, grinding equipment, crushing equipment, drying equipment, cooler and other screening, conveying equipment.Having developed the pellet machines with reliable functions, reasonable design, energy saving and high efficiency low consumption, our vertical ring die pellet mill which use special gear transmission has sold very well during home and aboard.
We always supply the most suitable machines for customers with excellent quality and competitive price.
OUR WORKSHAOP
About us:

TONY is a professional manufacturer and exporter engaged in the research, production, sale and service of Biomass wood pellet line, wood pellet mill, grinding equipment, crushing equipment, drying equipment, cooler and other screening, conveying equipment.Having developed the pellet machines with reliable functions, reasonable design, energy saving and high efficiency low consumption, our vertical ring die pellet mill which use special gear transmission has sold very well during home and aboard.
We always supply the most suitable machines for customers with excellent quality and competitive price.
Questions asked Frequently
Q: What is a pellet mill/pellet machine?
A: A pellet mill/pellet machine is a machine that takes raw materials and shapes it into pellet form for multiple uses.
Q: What kind of materials can be pelletized?
A: Materials such as wood wastes, saw dust, corn cobs/stover/stalks, straw, switch grass, other grasses, distillers grain, paper, etc. Basically, most Biomass materials that can be ground down to sawdust form can be pelletized.
Q: What are pellets used for?
A: Pellets are used mainly for heating, animal feed, and animal bedding. Many other applications may apply.
Q: What size does my material need to be, to run through the pellet mill?

---
