A perfect partner for tower crane / concrete pump and processing machinery.
5 Steps Dual Axis Joystick (Patented) Long life silicon rubber structure (Patented) Sealed construction Angle Detector (Dust-free) 2 mm Stainless Steel gears give excellent clear mechanical feeling during operating Patented swing mechanism extends Angle Detector life cycle in severe operation condition Optical sensor (neutral position) making operation safer
Security Enhanced & Anti-Spy Transmitter with its powerful processor, it generates SRC (Secruity Random Code) radio signal with random coding to prevent spy copying By integrating hamming coding and CRC (Cyclic Redundancy Check) technology, it provides accuracy in radio data transmission A unique Non-Repeated security code (ID code), it prevents the error output and improves the operating safety
Take and Release This feature allows two or more operators the ability to control one crane system from opposite ends of a long runway or cross travel

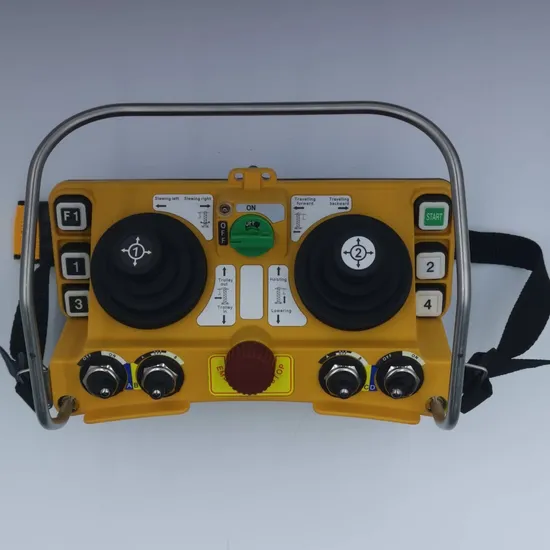

Relay Configuration Control up to 16 relays for single axis. It gives great flexibility for complex control Features 5-step Joystick x 2 Single speed pushbutton x 6 Selector Switch x 4 (2 positions x 2 / 3 positions x 2) EMS Button x 1 Rotary Key x 1 Durable nylon-fiber housing for extra shock resistance Fully programmable relay configuration with maximum 16 relays output per command Operating range: Up to 100 meters Pre-wiring standard cable making installation quick and easy Economic efficiency, ease of operation 3 stages LED battery power indicator Feature acceleration delay time control (smooth moving for mutilple speeds cranes) Safety features: 4.3 billion unique ID code / Hamming code > 4 / enhanced watch-dog circuit Operating temperature range -35°C to +80°C Transmitter
Dimension: 220 x 110 x 90 mm Weight: 860 g (w/o batteries) Power: 4 AA batteries, Alkaline / Rechargable acceptable Receiver
