HY-R10 Transformer inductor coil CNC double-axis winding machine

Product Details

Product Description

Product Description
Transformer side double axis CNC winding machine

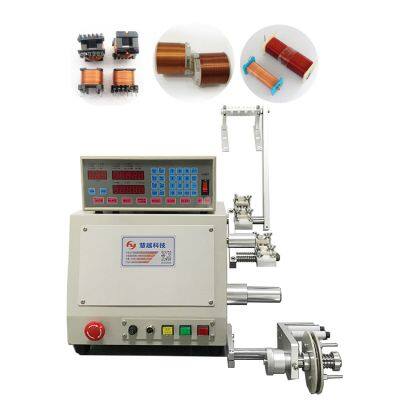

HY-R10 Transformer inductor coil CNC double-axis winding machine
1. Suitable for ballast, rectifier and other open coil, solenoid valve, transformer:
2. Taiwan controller, AC frequency conversion, AC motors, environmental protection, low noise;
3. Multi-functional microcomputer design, easy to set the data ,, and boot to save the information;
4. Teaching function design, can be easily set from the point of origin and width;
5.0-999 group steps to set the capacity, with powerful AC motors and precision stepper motor, can be easily set reversal, cross-transverse slot and sparse winding work;
6. Variable axis synchronization, can improve efficiency;
7.multi-functional microcomputer design, data easy to set, turn off to save data, and power-down protection;
8.teaching function design, can be assisted from the starting point and the width of the position setting, the suspension of the editing of winding information;
9.0 ~ 999 sets of steps to set the capacity, can be easily set positive, reverse, cross slot and sparse winding work;

Applicable diameter	0.01-0.2mm
Maximum revolutions	3000 rpm
Number of spools	2
Spindle motor	AC 370W
Winding width	120 mm
Cable motor	9V Stepping Motor
Cable width	210 mm
Power supply voltage	AC220V / 50HZ
Machine Size (mm)	L500 * W600 * H1000
Machine weight	46kg

---
