Hot Sale Universal Milling Machine with CE Approved XL6236

Product Description

Product Description

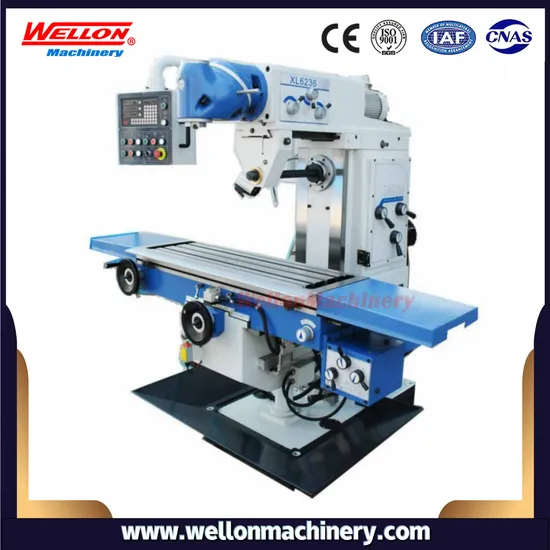

Hot Sale Universal Milling Machine with CE Approved XL6236

Product Parameters
Feature:
Rectangular guideways
Universal cutter head with 2 levels can be adjusted to virtually any angle (HURON System)
Rapid feeds on all axes allow quick positioning
Control panel swivels for comfortable operation
Separate drives with gearbox for powerful material removal

Technical parameter:

Specification	XL6236
Spindle taper	7:24 ISO40(V)
	7:24 ISO50(H)
Distance from spindle center line to column surface	350~850mm
Distance from spindle nose to worktable	210~710mm
Distance from spindle center line to worktable	0~500mm
Distance from spindle center line to arm	175mm
Spindle speed	11steps 35~1600r/min (V)
	12steps 60~1800r/min (H)
Worktable size	1250×360mm
Worktable travel Longitudinal	1000X320X500mm
Worktable longitudinal/cross power feed	8steps 15~370mm/min
	Rapid:540mm/min
Worktable elevating power feed	590mm/min
"T"slot(Number/Width/Distance)	3/18/80mm
Main motor	3.0kw (V) 4kw (H)
Worktable power feed motor	750w
Worktable elevating motor	1.1kw
Overall dimension (L×W×H)	2220×1790×2040mm
Net weight	2400kg

Standard accessories:
Collet chuck kits
Mill arbors
Draw bar
Working lamp
Coolant system
Some tools
Optional accessories:
58pcs Clamping kits
Universal dividing head (F11-160A)
Rotary table TSL300
3 axis DRO
Machine vice 200mm
Company information
Packaging & Shipping
FAQ

1: What's your main products of your company?
A : We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining
Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
2:What kind of controlsdo you use on machines?
A :Siemens,GSK ,Fanuc etc. You can choose according to your requirements .
3. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
4 : How can I choose the most suitable machines ?
A : Please tell me the model or parameter you are interested in, we can provide you with the best price and quality.
You can also send us product pictures and we will choose the most suitable machine for you.
5 : Do we receive any updates while machine is in the manufacturing process?
A : Of course. The progress of the machine will be updated regularly and sent to you.

---
