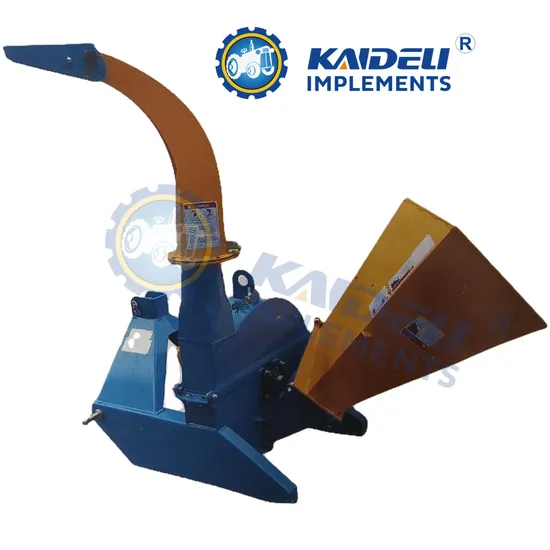

CE Approved Bx62r Wood Chipper, Pto Wood Chipper Hydraulic Feed

Product Description

Product Description

Rotor
At the heart of the Kaideli BX and BX-R Chipper is an oversize heavy duty rotor and reversible chipping blades. The large diameter rotor has a faster tip speed for improved chipping action and the heavy gauge steel keeps your momentum to power through 6" diameter tree trunks.
Blade
The reversible blades are precision cut tool steel and hardened, keeping a sharp cutting edge and maximizing the performance of the chipper
Twig Breaker Blower Paddles
Behind the blades are blower paddles with integrated twig breakers designed for greater output force and smaller chips exiting the machine. This provides more consistent chip size and allows you to propel the chips further.
Adjustable Chute
Easily control where you want the chips with the double adjustable Exit Chute. The chute swivels 360 degrees and the top deflector adjusts the distance
Hydraulic Feed Hopper
Maximize your chipping with the aggressive hydraulic feed hopper. Chipping becomes effortless when you let the rotating teeth do all the work. As the brush is fed into the chipper, you can be ready with the next piece. Product Parameters

Model	BX42
Chipper Capacity	100mm/ 4''
Chipper Housing Opening	4''x10''
No. of Knives	4
Rotor Size	25''
Feeding System Feed	Self Feed
Hopper Folded	40''Lx42''Wx60''H
Hopper Opening	20''x20''
Mounting System	3 Point Hitch
Discharge Hood Rotation	360°
Discharge Hood Height	60''
Structure Weight	195kg
Tractor HP	18-30hp

Model	BX42R
Max Chipping Diameter	100mm/4"
Chipping House Opening	4''x10''
No. of Blades	4
Rotor Size	25"
Feeding System Feed	Hydraulic Feed
Hopper Holded	40 ''Lx42''Wx60''H
Hopper Opening	20''x20''
Mounting System	3 Point Hitch
Hopper Discharge Rotation	360
Hopper Discharge Height	60"
Net Weight	293kg
Gross Weight	315kg
Tractor HP	18-50hp

Model	BX62R
Max Chipping Diameter	150mm/ 6''
Chipping House Opening	6.5''x12''
No. of Blades	4
Rotor Size	30''
Feeding System Feed	Hydraulic Feed
Hopper Holded	50''Lx52''Wx74''H
Hopper Opening	25''x25''
Mounting System	3 Point Hitch
Hopper Discharge Rotation	360
Hopper Discharge Height	74''
Net Weight	448kg
Gross Weight	468kg
Tractor HP	30-100hp

Model	BX62
Chipper Capacity	150mm/ 6''
Chipper Housing Opening	6.5''x12''
No. of Knives	4
Rotor Size	30''
Feeding System Feed	Self Feed
Hopper Folded	50''Lx52"Wx74''H
Hopper Opening	25''x25''
Mounting System	3 Point Hitch
Discharge Hood Rotation	360°
Discharge Hood Height	74''
Structure Weight	350kg
Tractor HP	30-100hp

Model	BX92R
Max Chipping Diameter	250mm/10''
Chipping House Opening	10''x15''
No. of Blades	4
Rotor Size	36''
Feeding System Feed	Hydraulic Feed
Hopper Holded	66''Lx68''Wx90''H
Hopper Opening	25''x25''
Mounting System	3 Point Hitch
Hopper Discharge Rotation	360
Hopper Discharge Height	90''
Net Weight	625kg
Gross Weight	650kg
Tracto HP	65-100hp

Detailed Photos
BX42
BX42R
BX62
BX62
BX62RS

Certifications

Company Profile

Changzhou Kaideli Machinery Co Ltd was founded in 2010. It locates at Changzhou city of Jiangsu province, which is about one hour far from Shanghai city by fast train . Our company is a professional manufacturer for farm machinery, which owned more than 200 models of various agricultural implements, such as backhoes, loaders, rotary tiller, post hole digger, mowers, snow blade, plough and so on. Our company was started from producing spare parts of agricultural implements, such as the gear box, bearing , hydraulic cylinder and so on. So after some years development , we accumulated abundant designing and manufacturing experience in agricultural machinery and components . Now we have 7000 m space factory and more than 80 workers. including more than 5 technicians, for better quality and faster delivery. Any way, our company has got the CE certificate for most of our popular products.So our products were mainly exported vivo X100IZEISSto Europe, America, Australia, South Africa and so on .
PRODUCTS BEST. DELIVER PROMPT. EXCELLENT SERVICE ARE OUR BUSINSESS PRINCIPLES. t train . Our company is a professional manufacturer for farm machinery, which owned more than 200 models of various agricultural implements, such as backhoes, loaders, rotary tiller, post hole digger, mowers, snow blade, plough and so on. Our company was started from producing spare parts of agricultural implements, such as the gear box, bearing , hydraulic cylinder and so on. So after some years development , we accumulated abundant designing and manufacturing experience in agricultural machinery and components . Now we have 7000 m space factory and more than 80 workers. including more than 5 technicians, for better quality and faster delivery. Any way, our company has got the CE certificate for most of our popular products.So our products were mainly exported vivo X100IZEISSto Europe, America, Australia, South Africa and so on .
PRODUCTS BEST. DELIVER PROMPT. EXCELLENT SERVICE ARE OUR BUSINSESS PRINCIPLES.
Our Advantages

We provide good design, to help customers reduce costs of development and improve production efficiency. With complete testing equipment, strict quality control and abundant technical force, our machines are mainly exported to European, North American and Southeast Asian countries.All of our machines are with one year warranty. We often insist on one principle"Better quality!Better service!Better
price!

A whole complete set of production equipment lead to short lead time and better prices of machine.
Guarantee one year warranty of all our products.
Produce machines according to any requirements from our customers.
Every model of our machine will be tested before the delivery to the port.
If you want to visit our factory, our boss will give you a best reception.

---
