Hot Sale Total Station with Prism&Pole&Tripod&Free Walkie Talkie Total Station

Product Description

Key Features :
1.Color screen without prism measurement work
2.With 8 g OTG usb flash drive
3.400m reflectorless
4.2.8-inch color screen, 240 × 320 pixels
Hot Sale Total Station With Prism&Pole&Tripod&Free Walkie Talkie Total Station

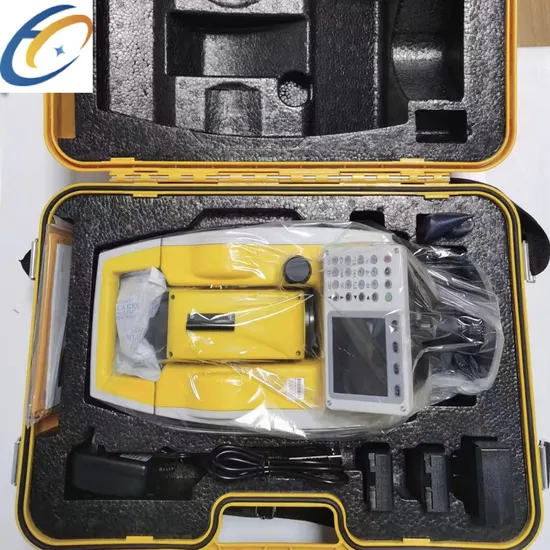

Accessories of Total Station ZTS420R

Hi-target ZTS-420R Total Station
Angle Measurement
Measurement Method:	Absolute Encoding
Minimum Readout:	1″/5″/10″(0.3mgon/1.5mgon/3mgon)optional
Accuracy	2"
Distance Measurement (with Reflector)
Single Prism	3000m (9,842ft.) under good condition3
Three Prisms	6000m (19,685ft.) under good condition3
Reflective Sheet	800m (2,624 ft.)
Accuracy	2mm +2ppm
Measuring Time (Fine/Quick/Tracking)	1s/ 0.5s
Distance Measurement (Reflectorless)
Reflectorless Range	400M
Single Prism	>7500m (24606ft.)
Accuracy	3mm+2ppm
Measuring Time	1.5s
Telescope
Magnification	30X
Field of View	1°30′ (2.7m at 100m)
Minimum Focusing Distance	1.5m
Reticle	Illuminated
Compensator
System	Dual-axis (optional)
Working Range	±3′
Setting Accuracy	1″
Bluetooth
Interface	Standard RS232, SD card4, USB pen drive
Internal Data Memory	Approx. 20,000 Points
Data Format	ASCII
Operation
Operation system	English Real-time Operating System
Display	2.8-inch High resolution backlight black and white display with contrast adjustment/ Graphics: 240 x 320 pixels / Character: 6 lines x 25 characters
Keyboard	2 sides Alphanumeric backlit crystal keyboard
Laser Plummet
Type	Laser point, 4 brightness levels adjustment / Optical plummet (optional)
Centering Accuracy	1 mm at 1.5m instrument height
Power Supply
Battery Type	Rechargeable Li-ion battery
Voltage/Capacity	ZBA-400: 7.4V (DC) / 3000mAh
Operating Time With ZBA-400	Optimal 16 hours5 (Continuous angle measurement every 30 seconds) / 10 hours (typical)
Measuring Times	Approx. 12000 times
Environmental
Operating Temperature	-20ºC ~+50ºC( -4ºF to +122ºF)
Storage Temperature	-40ºC ~+70ºC(-40ºF to +158ºF)
Dust&Water Proof (IEC60529 Standard)/Humidity	IP55

Our services:
1.Any inquiries will be replied within 12 hours.
2.All our products have one year warranty, And we sure the products will be free from maintenance within warranty period.
3.All products will have been strictly quality checked in factory before sending out.
4.we can providing instrument technology training
Packaging & Shipping
We have strong cooperation with DHL, TNT, UPS, FEDEX, EMS,China Air Post.
You can also choose your own shipping forwarder.
About payment:
Generally, we accept Trade Assurance, Irrevocable LC at sight, Advance T/T, Escrow and West union.If you prefer other payment terms, please let us know.

---
