Product Features 1.Excellent Sensor selection for high-speed acquisition of high-quality images
2.A single cable provides rich IO interface, can access multiple input and output signals
4.Top ring indicator for quick observation of working status 5.Double-sided side waistline result indicator, reading code OK/NG state multi-angle visualization
6.Modular light source design, sub-circuit control, easy to replace100% new Original. Specifications
| Model | Model Number | MV-ID3016PM-06M-WBN | MV-ID3016PM-12M-WBN | MV-ID3016PM-15M-WBN |

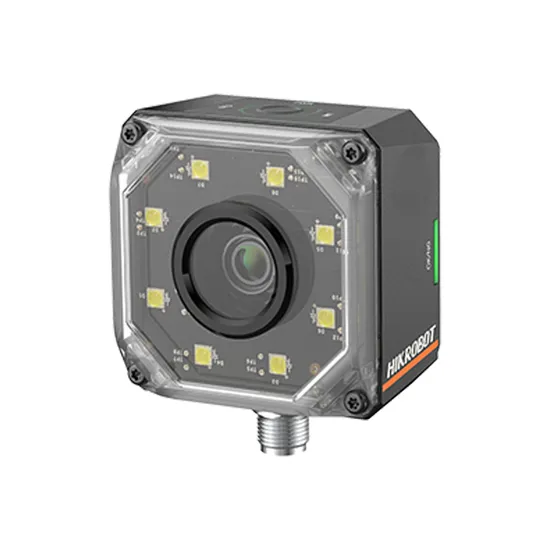

| Name | 6mm/12mm/14.8mm lens 160W resolution industrial intelligent code reader (V2.0) |
| Condition | 100% new Original |
| Performance | Bar code categories | 1D Code: Code 39, Code 93, Code 128, CodaBar, EAN8, EAN13, UPCA, UPCE, ITF14, Matrix 2 of 5, Matrix 25, MSI, China Post, Code 11, Industrial 25, etc. 2D codes: QR Code, Data Matrix, etc. Stacking code: PDF417, etc. |
| Maximum processing frame rate | 60 fps |
| Max. reading speed | 84 yards per second |
| Sensor type | CMOS, global Shutter |
| Image element size | 3.45 µm×3.45 µm |
| Target surface size | 1/2.9" |
| Resolution | 1408×1024 |
| Exposure time | 16 μs ~ 1 sec |
| Gain | 0 ~ 40 dB |
| Black and white/color | Mono |
| Communication protocols | SmartSDK,TCP Client,Serial,FTP,TCP Server,Profinet,MELSEC,Ethernet/IP,ModBus,Fins,SLMP |
| Electrical characteristics | Data interface | Fast Ethernet(100Mbit/s) |
| Digital I/O | 17-pin M12 interface provides power and I/O: contains 3 non-isolated inputs (LineIn 0/1/2), 3 non-isolated outputs (LineOut 0/1/2), 1 RS-232, supports touching the device via the top button |
| Power supply | 24 VDC |
| Maximum power consumption | 20 W@24 VDC (with fill light enabled) |
| Structure | Focal length | 6 mm | 12 mm | 14.8 mm |
| Lens interface | M12-Mount, Mechanical Focusing |
| Lens hoods | Transparent lens hood, optional polarizing lens hood |
| Light source | Spot white, optional spot red / blue / infrared, wide angle white / blue / red |
| Indicator lights | Power indicator PWR, network indicator LNK, status indicator STS, result display indicator OK/NG |
| Form factor | 65.2 mm × 65.2 mm × 47 mm |
| Weight | Approx 280 g |
| IP Protection Rating | IP67 (with proper lens waterproof cover installed correctly) |
| Temperature | Working temperature 0 ~ 50ºC, storage temperature -30 ~ 70ºC |
| Humidity | 20% ~ 95%RH non-condensing |
| General Specifications | Software | IDMVS |
| Certification | CE, FCC, RoHS, KC |
Company Profile FAQ Q1:Product quality? All products from the original factory with brand new . authentic products , supporting traceability to the source. Q2:Condition? 1. Price: Our products are ordered directly from HIKROBOT factories and we keep a certain inventory. Please confirm with us the inventory and the latest price before purchasing (the price of products in industrial control industry fluctuates greatly). If you cannot find the exact model in our Ali store (the online store cannot cover all models of countless industrial products), please contact our customer service and tell us the detailed model. We will try our best to meet your requirements. 2. Warranty and Return policy: All products will be returned within one month from the date of shipment. During the warranty period, if there is any quality problem or product failure (not man-made), we will accept return and warranty. Q3:We have not cooperation before , how we can believe you ? For our first order , you can pay after we prepare the goods.
The warehouse has stock, need the friend, please contact us All Code Reader ID2000 ID3000 ID4000 series available, Please contact us.
