High Precision Automatic Surface Grinding Machine

US$12,122.00
1 Piece
US$11,969.00
2+ Pieces

Basic Info.

Model NO.
SGA2550AHR
Abrasives
Grinding Wheel
Controlling Mode
Artificial
Automatic Grade
Automatic
Cylindrical Grinder Type
Surface Grinding Machine
Precision
High Precision
Certification
GS, CE, RoHS, ISO 9001
Condition
New
Table Size
406X813mm
Grinder Wheel Size
350X40X127mm
Model
Sga4080
Max.Longitudinal Travel
910mm
Electro Magnetic Chuck Size
400X800mm
Spindle Motor
5.5W
Hydraulic Motor
2.2kw
Max.Loading Capacity of Table
500kgs
Max Cross Travel
450mm
Table Longitudinal Speed
7-23mm
Transport Package
Wood Case
Specification
200X460/ 250X500/ 400X800
Trademark
UNI-TECH
Origin
China
HS Code
84602990
Production Capacity
100PCS/Month

Product Description

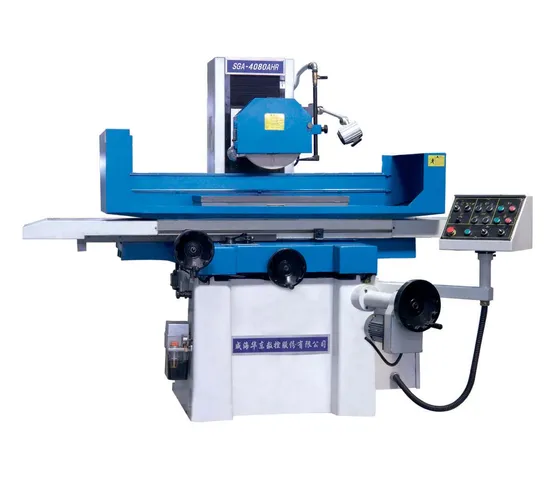

High Precision automatic surface Grinding Machine SGA4080AHR
Differences: AH mean: Auto intermittent feed on transverse, hydraulic transmission on longitudinal, manual on vertical.
AHR means: Auto intermittent feed on transverse, hydraulic transmission on longitudinal, rapid movement on vertical.
AHD means: Auto intermittent feed on transverse, hydraulic transmission on longitudinal, PLC auto grinding controller and servo motor is equipped and with wheel head auto down feed.

Advantage:
1. ISO certification
2. Taiwan cross leadscrew
3. Easy operation
4. Perfect painting
5. Siemens electric elements
Specification:

DESCRIPTIO
N		 UNIT SGA-2050H/AH
SGA-2050AHR
SGA-2050AHD
 SGA-2550H/AH
SGA-2550AHR
SGA-2550AHD		 SGA-3063AH
SGA-3063AHR
SGA-3063AHD		 SGA-30100AH
SGA-30100AHR
SGA-30100AHD
 SGA-4080AH
SGA-4080AHR
SGA-4080AHD
 SGA-40100AH
SGA-40100AHR
SGA-40100AHD
TABLE SIZE(WXL) mm 200*460 250*500 305*635 305*1020 406*813 406*1020
MAX. LONGITUDINAL/CROSS TRAVEL mm 510*238 560*275 765*340 1130*340 910*450 1130*450
MAX.DISTANCE FROM SPINDLE CENTER TO TABLE mm 450 450 580 580 580 580
ELETRO MAGNETIC CHUCK SIZE mm 200*460 250*500 300*600 300*1000 400*800 400*1000
SPEED OF TABLE LONGITUDINUAL MOVEMENT m/min 7-25
TABLE TRANSVERSE MOVEMENT AUTO FEED mm/min 0.1-8
RAPID SPEED m/min 990
FEED OF HANDWHEEL mm/div 0.02
WHEELLHEAD VERTICA MOVEMENT AUTO FEED mm/min AHD:0.005/0.01/0.02/0.03/0.04/0.05
RAPID SPEED m/min AHR:460 AHD:240
FEED OF HANDWHEEL mm/div 0.005
GRINDING WHEEL SPEED rpm 2850(50HZ.3450(60HZ) 1450(50HZ).1750(60HZ)
SIZE mm 200*20*31.75 350*40*127
SPINDLE NOTOR kw 1.5 2.2 5.5
HYDRANLIC MOTOR kw 0.75 2.2
COOLING PUMP MOTOR kw 0.04 0.125
ELEVATING MOTOR kw AHR:0.25 AHD:0.5
CROSS FEED MOTOR kw 0.04
MAX.LOADING CAPACITY kg 120 180 270 400 500 600
TOTAL RATED POWER kw 3 3.7 9
HEIGHT OF MACHINE mm 1675 1890
FLOOR SPACE mm 2050*1400 2300*1600 2800*2200 4400*2200 3600*2400 4400*2400
GROSS WEIGHT kg 1600 1800 2800 3500 3800 4300
PACKAGE DIMENSIONS mm AH:1780*1500*2155
AHR/AHD:1906*1716
*2195
 AH:2116*2016*2208
AHR/AHD:2316*2016
*2208
 2350*2220
*2150		 2950*2220
*2210		 2850*2270
*2180		 2950*2270
*2210
