Product Details
Product Description
Product Description
WHO WE ARE:
Established in Year 2005, as an ISO9001/IS014000/OHSAS18001 accredited company and high-tech enterprise, Luoyang Deping Technology Co., Ltd (DP pipe machine) is specialized in manufacturing pipeline construction equipment and providing automatic welding solution onshore & offshore.
Our products comply with European Union safety regulations (CE) and have been supplied to more than 40 countries around the world
Customized machine services are available as per client’s specific requirement
Membership:
IPLOCA member (International Pipe Line & Offshore Contractors Association)
Internal line up clamp with copper shoes for pipe automatic welding YOUTUBE LINK:
/watch?v=ViGymE-z5Ko

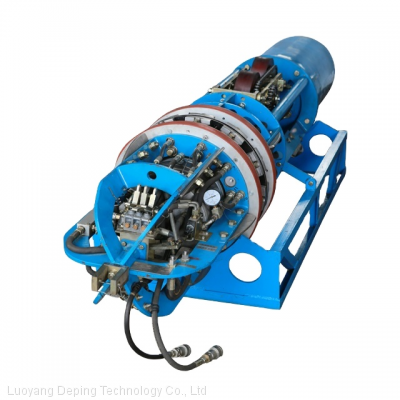

INTERNAL PIPE LINE UP CLAMP work inside the pipe to align two pipe joints for external welding
Technology specs:
1.Applicable pipe size 6"-80"
2. All Pneumactid components of our clamps used are the German brand--FESTO,with 16 sets Valves and 3 sets cylinder
3.The drive motor we used are the American brand--Ingersoll with best quality.
4.The clamp shoes can be up to 36 pieces.
5.Our clamp can be used at ambient temperature of -30 to +80 degree and air humidity of 95%. Protection grade of air control valveis IP65.
6. All carbon steel force parts of the clamp are treated by nitriding rust proof. All standard parts are treated with nail rust
proof. All connections includes hose buckle at both ends are use of Dacro painting.
7. The frame painting of the clamp is made of one special paint which called salt spray resistance for three times.
8. Can custom special line up clamp as the project request.
PRODUCT SPECIFICATIONS
DKQ1168
|
|
Scope of application
| Φ1168-1270 46-50"
|
Product size
| Φ1000×4350
|
Weight
| 2180KG
|
Number of clamp shoes
| 24×2
|
Support pressure
| 5T
|
Input pressure
| 1.5MPa
|
Working pressure
| 0.8 MPa
|
Traveling speed
| 0—1m/s
|
Grade ability
| 15°
|
Driving mode
| SELF-PROPELLERD
|
Main disposition
| FESTO gas circuit components
|
>>
