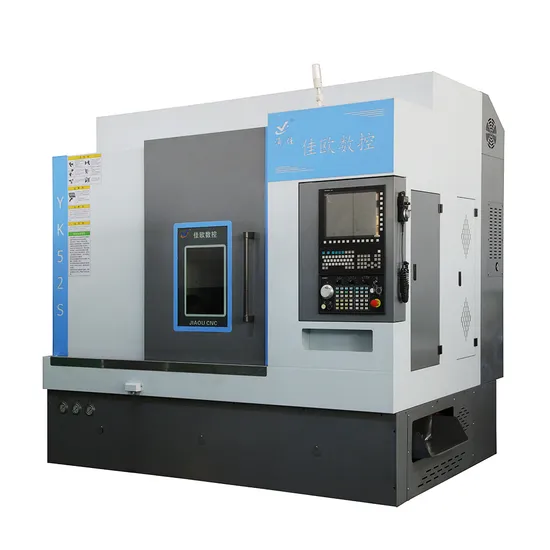

Yk52s Double-Spindle Y Axis CNC Lathe Turret Machine

Product Description

Product Description
Dual-Spindle Configuration for Enhanced Productivity
The dual-spindle setup allows for seamless transitioning between operations, enabling simultaneous machining on both ends of a workpiece. This design significantly reduces setup times and boosts overall throughput.
90-Degree Y-Axis with BMT55 Power Turret
Equipped with a 90-degree Y-axis and a BMT55 power turret, this machine offers superior milling capabilities alongside traditional turning functions. The Y-axis facilitates off-center milling operations, enhancing the machine's versatility in handling intricate geometries.
Integrated Turning and Milling Functions
This multifunctional lathe combines turning and milling operations within a single setup, streamlining workflows and minimizing the need for multiple machines. Such integration leads to reduced processing times and improved machining accuracy.
High-Precision Components from Taiwan, Japan, and Germany
Incorporating precision parts sourced from leading manufacturers in Taiwan, Japan, and Germany, the machine ensures exceptional accuracy, reliability, and longevity, meeting the stringent demands of modern manufacturing.
Rigid Slant Bed Cast Iron Structure
The robust slant bed design provides excellent rigidity and vibration dampening, maintaining machining accuracy and surface finish quality during heavy-duty operations.
Product Parameters

Machining Capacity	Swing over bed	mm	ф420
	Swing over carriage	mm	ф250
	Max machining length	mm	460
	Max turning dia	mm	ф400
	Interference diameter	mm	ф200
Spindle	Spindle nose	-	A2-6
	Spindle bore	mm	ф67
	Max bar material size	mm	ф52
	Taper of spindle inner hole		Metric 70(1:20)
	Spindle motor power	kw	22
	Chuck size	inch	8
	Spindle speed	rpm	4000
Sub-spindle	Sub-spindle nose	-	A2-5
	Sub-spindle bore	mm	ф56
	Max bar material size	mm	ф46
	Taper of sub-spindle inner hole	MT	6#
	Sub-spindle motor power	kw	11
	Chuck size	inch	6
	Sub-spindle speed	rpm	5000
Axes specs	Axes travel	mm	Z1500 Z2500 X240 Y±50
	Axes fast moving	m/min	Z124 Z224 X22 Y18
	Repeatable positioning accuracy	mm	X0.003 Y0.003 Z10.005 Z20.005
Tool type	Turret	-	12-125-380-BMT55
	Tool holder size	mm	25*25/ф32
Other specs	Programming		ISO standard
	Cooling motor	w	650
Measurements	Dimension		around 2570*1780*2600
	Weight	kg	around 5000

Certifications
We have our own independent R&D and design team and have applied for a number of technical patents. From high-precision spindles to bed bodies to external sheet metal, the R&D and design department designs and the production department implements, giving us full control over design and production autonomy, making it more flexible and changeable.
Company Profile
Yuhuan Jiaou CNC Machine Tool Manufacturing Co., Ltd. is located in Bingang Industrial City, Shamen Town, Yuhuan City. Our company is a technology-based enterprise, specializing in the R&D, production and sales of CNC machine tools, and has a professional technical and sales service team who has long been engaged in the design and development of CNC machine tools, constantly innovating and advancing with the times. The precision CNC lathes designed for the metal working, including gang type, turret type, mill-turn compound type, can easily handle complex, precise, small-batch, and multi-variety part processing problems, and provide customers with targeted and efficient metal cutting solutions, creating more possibilities for their intelligent and automated production processing.
Equipped with a complete quality testing system and sophisticated testing instruments, our company has passed the ISO9001 system certification to ensure that we provide customers with high-quality equipment and fast after-sales service.
We adhere to the business philosophy of "Detail first, customer first, and creating maximum value for customers", and always implements the quality guideline of "Quality first, continuous improvement". We provide full-service from pre-sales to after-sales, from products to designs, and wholeheartedly commit to providing customers with thoughtful, advanced, high-quality, cost-effective equipment.
Creating the greatest value for you is of most significance for Jiaou's efforts!
Yuhuan JIAOU CNC has multiple production workshops, from bed component blank processing, optical and mechanical assembly, installation and debugging, sheet metal laser cutting and bending, external protective sheet metal spraying, etc., all of which are independently produced and processed.
Packaging & Shipping
FAQ
Q: What's the availability of spare parts?
A: We maintain a comprehensive stock of spare parts with quick delivery options.
Q: What CNC control system does it use?
A: Our machines can be equipped with different brands of CNC control systems, such as FANUC, SIEMENS, SYNTEC, KND, GSK, etc.
Q: Do you provide operator training?
A: Yes. We welcome your engineers or operators to have operator training at our site. And we are able to provide online technical support as well.
Q: What's the lead time for delivery?
A: Faster delievery time. 10-20 days for our standard regular machines, the delivery time of customized machine need to be negotiated.
Q: Is customization available?
A: Yes. We have rich experience in custom processing and can provide flexible customization services from bed to processing parameters to appearance.

---
