Product Description
Product Description

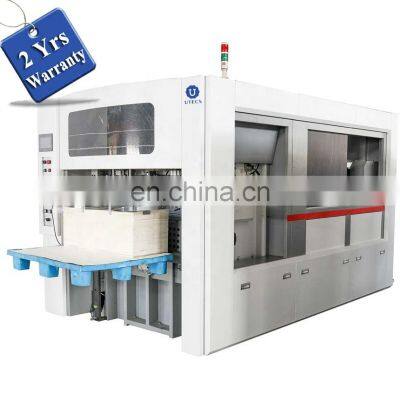

TMQ950 Automatic PE-coated Paper Jumbo Roll Die Cutting and Punching Machine for Paper Cup plate tray blank fan
Videos
Video demonstration only for reference
Video : /watch?v=i2Dxog54P_4
TMQ950 Description
Description
TMQ 950 series automatic roll feed flat die cutting machine is widely applied in producing cigarette and hamburger cases, pharmaceutical packaging boxes, envelopes, paper cup fans, paper bowl fans and various paper products with high precision and stability by die cutting creasing and embossing requirement. The machine could complete the die cutting, creasing, embossing and stacking in just one pass.
Parameters:
Model
| TMQ950
| TMQ1200
|
Cut Precision:
| ± 0.20mm
|
Speed
| 90-140 times/min
| 90-140 times/min
|
Maximum cutting size:
| 950*510mm
1050*600mm (enlarged for optional)
| 1160 *600mm
1360*740mm (enlarged for optional)
|
Max Feeding Width:
| 950mm
| 1200mm
|
Max unwinding diameter
| 1600mm
| 1600mm
|
Paper Weight
| 120-400GSM Paper and PE coated Paper
|
Maximum Pressure:
| 150T
|
Total Power:
| 12KW
| 12KW
|
Total Weight:
| 5.5T
| 6.5T
|
Dimension:
| 4500*2200*1800 mm
| 4500*2600*2000mm
|
Working Air Source:
| Air pressure 0.5-0.7Mpa (Need to buy compressor)
|
Detailed Images
Service Team
Pre-sale Service After-sale Service
A: Inquiry and consulting support A: English manuel and video instruction
B: Sample testing support. B: Your technians can get trained in my factory
C: Invoice and Contract confirmation. C: Engineers available for overseas if necessary
FAQ
1.Q: What information should i let you know if i want to get a quotation?
A: Detailed size of your finished products in Max and Min?
B: Paper thickness in GSM
C: Some photos of your finished products
2.Q: Are you a manufacturer?
A: Yes we have been manufacturing such machines over 20 years and also we are a professional exporter.
3.Q: What about the payment term?
A: Mostly 30%T/T in advanced, 60% when machine is finished after inspection and last 10% against copy of shipping documents..
4.Q: What is the warranty?
A: Two year warranty after sales (During the warranty period, we respond for free parts dispachment and the buyer is only required to cover the courier express once the machine has any problems. However we do not respond for the consumables and parts broken by mistakingly operation)
5.Q: What is your aftersale service?
A: Any questions will be responded within 24 hours by email, skype, phone call or Whatsapp/Wechat (+86-18258286679). In addtion, we have professional engineer available for overseas service..
6.Q:What is the delivery time?
A: Mostly it takes 10 to 30 workdays after receiving the deposit and confirming the drawing or samples as required.
Contact Us
YOU ARE WELCOME TO CONTACT US ANYTIME AVAILABLE.
WHATSAPP/MOBILE: +86-18258286679
EMAIL: UTECS @UTECSINTER.COM, UTECSINTER @GMAIL.COM
SKYPE: DANIELSUER
WEBSITE: WWW.UTECSINTER.COM
>>
