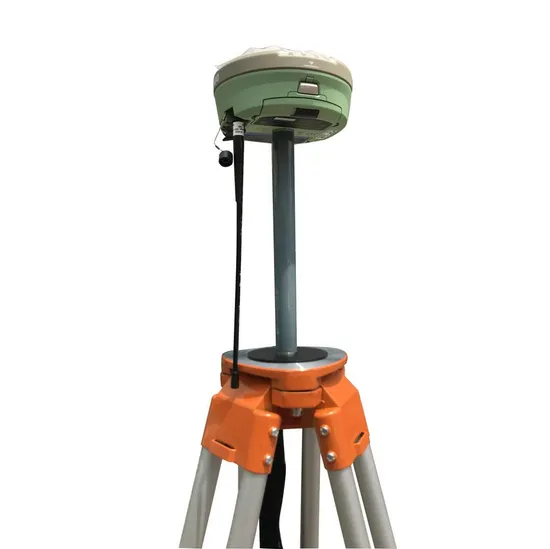

Hot Selling Foif A90 Rtk Gnss with 800channels Support Imu

Product Description

SPECIFICATIONS

Model		A90
GNSS	Channels	800
	Signals	BDS: B1, B2, B3
		GPS: L1CA, L1P. L1C, L2P, L2C, L5
		GLOASS: G1,G2, P1, P2
		GALILEO: E1BC, E5a. E5b
		QZSS: L1CA. L2C. L5, L1C
		SBAS: L1CA, L5;
		L-Band
Accuracy	Static	H: 2.5 mm±1ppm , V: 5 mm±1ppm
	RTK	H: 8 mm±1ppm, V:15 mm±1ppm
	DGNSS	<0.5m
	ATLAS	8cm
System	Initialization Time	8s
	Initialization Reliable	99.90%
	Operating System	Linux
	Merrory	8GB, support expanable MisroSD
	Wifi	802.11 b/g/n
	Bluetooth	V2.1+EDR/V4.1Dual,Class2
	E-Bubble	support
	Tilt Survey	IMU Tilt Survey 60°,Fusion Positioning/400Hz refresh rate
Datalink	Audio	support TTS audio broadcast
	UHF	Tx/Rx Internal Radio, 1W/2W adjustable, radio support 410-470Mhz
	Protocol	support GeoTalk,SATEL,PCC-GMSK,TrimTalk,TrimMark,SOUTH,hi target
	Network	4G-LTE, TE-SCDMA, CDMA(EVDO 2000), WCDMA, GSM(GPRS)
Physical	Interface	1*TNC Radio Antenna, 1*5Pin(Power & RS232),1*7Pin (USB 81 RS232)
	Button	1 Power Button
	Indication Light	4 Indication Lights
	Size	Φ156mm * H 76mm
	Weight	1.2kg
Power supply	Battery capacity	7.2V, 24.5Wh(standard two batteries)
	battery Life Timer	Static Survey: 15 hours, Rover RTK survey: 12h
	External power source	DC 9-18V, with overvoltage protection
Environment	Work Temporature	-35ºC ~ +65ºC
	Storage Temporature	-55ºC ~ +80ºC
	waterproof&dustproof	IP68
	Humidity	100% anti-condensation

Packing & Delivery
Company ProfileShanghai Newdi Navigation Technology Company Limited (NEWDI)
was established in Shanghai China. We are engaged in providing high-precision surveying and mapping instrument. The involved industries include land survey, construction, marine and UAV
Till now, we have a professional sales team with 5 year experience in average. Branch office in the USA, DUBAI, India and South Africa offers local technical support to word wide users. We put technical support and ll be input our Rafter sale service as our highest level principle. 10% of our revenue is input into R&D every year. We never stop developing a better product for our customer. Quality issues are at the forefront of NEWDI's philosophy. NEWDI received ISO 9001 certification from International Standards Organization. It applies to all aspects of NEWDI's every development process and workflow, covering all steps from the initial design to the final delivery.
Our distribution network covers more 10 countries. We take the mission to make survey easier. We are proud of the value that customer benefit from our service and returns continuous trust to NEWDI.
FAQ
1. who are we?We are based in Shanghai, China, start from 2016,sell to Southeast Asia(30.00%),Africa(25.00%),South America(15.00%),North America(10.00%),Mid East(5.00%),South Asia(5.00%),Eastern Europe(3.00%),Oceania(2.00%),Central America(2.00%),Southern Europe(2.00%),Eastern Asia(1.00%). There are total about 1-4 people in our office.2. how can we guarantee quality?Always a pre-production sample before mass production;Always final Inspection before shipment;3.what can you buy from us?GNSS Receiver,Total Station,Level,UAV,Marine Product4.why should you buy from us not from other suppliers?Offer technical support and repair by our experts; Give survey consultance to fresh surveyors; Present suggestion on suitable equipment and software according to csutomer's project request5. who are we what services can we provide?Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES;Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;Accepted Payment Type: T/T,L/C,PayPal,Western Union,Cash;Language Spoken:English,Chinese,Spanish,Hindi

---
