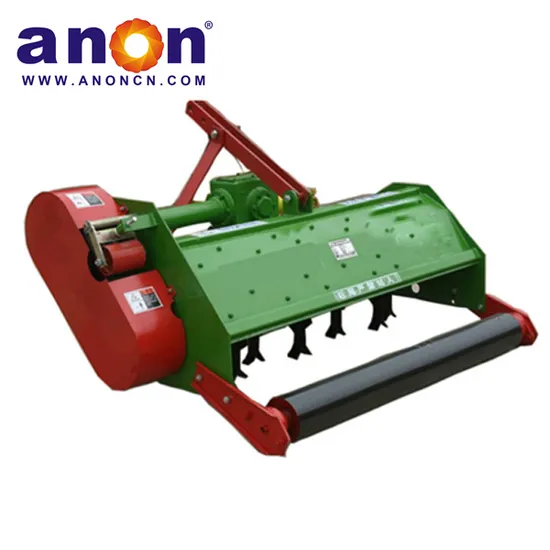

Anon Factory Direct Supply Cheapest Straw Crushing and Returning Machine

US$800.00-1,000.00 1 Set (MOQ)

Basic Info.

Model NO.
1JH-120
Farming Policy
Dry Cultivating Machinery
Power Source
Tractor
Operation
Soil Preparation Machinery, Continuous Running Operation
Traction Type
Semi Hanging
Drive Type
Gear Drive
Arbor Configuration
Vertical Shaft
Certification
CE
Color
Any Color
Warranty
1 Year
Matched Power
22.1-29.4kw
Model
1jh-120
Weight
265kgs
Power Transmission Form
Transmission Shaft
Working Efficiency
Above 0.33(Hm2/H)
Transmission Structure Type
Belt Drive
Working Width
1100mm
Number of Blades
34
Crush Length Pass Rate
Above 92%
Transport Package
Iron Box
Specification
1300X1300X800mm
Trademark
ANON
Origin
Hubei
HS Code
8432311100
Production Capacity
1000sets/Week

Product Description



Product Description
Main Features
This machine is specially used for crop straw smashing and returning, and the roots of the crops left behind after harvesting of crops such as corn. Model 120 can also be used for harvesting and snoring of 2CM-2 potato planter, which can be used in one machine.It is more practical.
Features: lt has thecharacteristics of smallpower consumption, goodsmashing effect, uniformscraping of pieces, longblade life, strongadaptability, low failurerate of the whole machineand convenient use andmaintenance.
The main advantage: The seedlings or straws that fallat the bottom of the ditch can also be sucked up andthen crushed, and the potato is not damaged whenharvesting the potato.
Working principle: Theboring tool rotates at ahigh speed to generatenegative pressure. Thecrop straw at the bottomof the riclge is sucked upand the blade running athigh speed smashes it.
Product Parameters
Type 1JH-120
Overall Dimension 1500*1000*1000mm
Transmission Structure Type
Belt drive
Working Width 1200mm
Number of Blades 54
Crush Length Pass Rate ≥92%
Working Efficiency ≥0.4(hm²/h)
Weight 200kg
Matched Power 30 HP
Power Transmission Form transmission shaft
