15ton Cross Flow Paddy Dryer Factory with Good Quality

Product Description

Company Profile
ChenYu has been continuously inventing pioneered drying technology over the past 18 years,Pursuing lowest drying cost, producing highest quality grain, providing greatest benefit to farmers. Professional use design, high durability, simple operation, easy management. Using discarded resources such as husk, wood chips and corn cobs. Cost saving and environmentally friendly.
Product Description
ChenYu's 15ton grain dryers are used for drying agricultural products: corn,maize,wheat,peanuts,oil seed,etc.
The drying process is to remove humidity and prevent the products from fungi or mildew,which provides the possibility of longer time storage.
1. The grain dryer equipment has a simple structure; Small volume after dismantling,easy for transportation and movement.
2. Equipped with online moisture meter,automatic moisture control to prevent over-drying and weight loss.
3. Automatic temperature control system:the hot air temperature and air volume can be adjusted during drying process automatically to ensure the top drying quality.
4. Highly automated operation with microcomputer control to reduce labor and improve working efficiency.
5. Increased drying area and the drying speed is accelerated.
6. Variety of heat sources can be applied,including biomass,fuel,gas,coal,etc.


Product Parameters

Model		12ton cross type(with auger)	15ton cross type(with auger)
Structure type		Batch type circulating
Drying way		Indirect heating
Drying type		Cross flow
Dimension(L*W*H)mm		3160*3960*9040	3160*3960*10100
Batch volume(t/d)		12	15
Moisture(%/h)		0.5-1.2
Height of drying layer(mm)		1156
Height of the tempering layer(mm)		5570	6630
Effective volume(m³)		22.8	27.12
Hot air temperature range(ºC)		40-90
Number of fan		1
Total power of fan(kw)		9(not include dust install)
Productivity(t/h)		≥15
Device	Safety device	Full grain alarm device, thermal relay, temperature controller, grain temperature sensor, hot air temperature sensor, overload protection, leakage protection device.

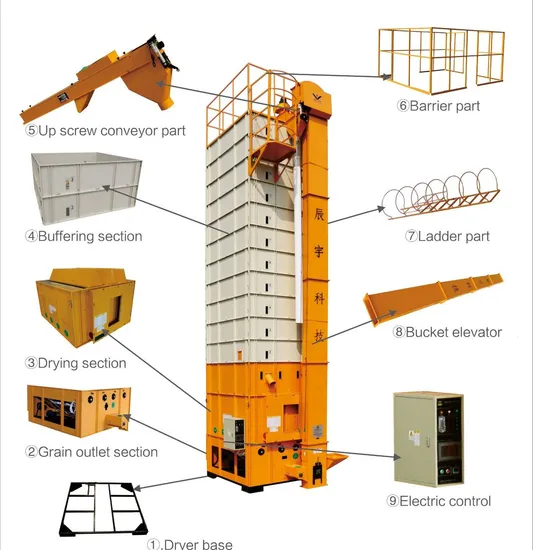

	Standard device	Online moisture meter, online temperature detector, dryer base, dryer discharging layer, drying layer, tempering layer, elevator, hot air blower, guard railing, ladders, etc.

Detailed Photos
The drying layer mesh plate of the cross flow dryer is made of high-quality stainless steel material, which has strong corrosion resistance, longer service life, and better temperature transfer effect; The mesh adopts 2.5-3.0mm to ensure even passage of grains and more uniform heating.
The dustbin made of thick PP material is designed to be more wear-resistant, and the conveyor belt is also thickened to improve its stability, durability, and reduce customer costs in the later stage
The main engine chassis is simple and easy to clean by using gravity bearing calculation.
The hoist adopts new structure design to guide grain and reduces 80% damage.
The lower winch of the main engine adopts the connecting rod structure design, and the grain discharge rate reaches 98%.
Cancel the structure of hanging dragon and reduce physical fragmentation.
Using Siemens Electrical Appliances:
1. A globally renowned brand with high stability and guaranteed quality, reducing equipment failures
2. High reliability, with a global supply chain, convenient for maintenance and replacement
3. High quality, longer service life, and higher accuracy
Before Our Grain Dryer VS After Our Grain Dryer
Certifications
OUR HONOR
National Innovative Enterprise
National Technological Innovation ModelEnterprise
Key Software Enterprises within the NationalPlanning Layout
Key High-Tech Enterprise of the National TorchPlan
National Intellectual Property ModelEnterprise
National Industrial Brand Cultivation Model Enterprise
National Certified Enterprise Technology Center
National Postdoctoral Research Workstation
National Aariculture Product IntelligentSorting Equipment Enqineering ResearchCenter
Intelligent Sorting Technology InnovationCenter in Anhui Province
Two National Science and TechnologyProgress Second Award
Four Anhui Provincial Science andTechnology First Award Packaging & Shipping
Perfect wooden case&Shanghai port
Our Advantages
We have fully automatic production line and a team of professionals that includes mechanical & electrical engineers, industrial designers, marketing personnel and other staff that supports our entire production process. Our team members work in coordination to meet the demands of product designing process.

FAQ
1.Why do we need a grain dryer?
With a grain dryer, you can dry your grains when they are still fresh and prevent grain mold. Your harvest will no longer be at the mercy of the weather. Also, the paddy dried at low temperature is alive and suitable to make high value small-package rice, increasing your income.

2.How to choose the right dryer model?
This depends on your grain type, kernel sizes, shapes and quantity. CHENYU has various models available. Please check our website for the list of products that can be dried.

3.Can a single re-circulating type grain dryer dry various grains?
You can maximize your return of investment by using the same dryer to dry various grains and seeds.

4.I am not sure if my product can be dried by CHENYU's dryers.
CHENYU has more than 20 years of experience in drying. If you aren't sure, please provide detailed information of your product, CHENYU can make assessment for you.

5.Can a dryer be installed outdoors?
According to the experiences in Europe and North America, using a dryer outdoors has the following disadvantages.
1. Malfunction, degradation, rust and reduced lifespan easily occur as the dryer is exposed to all sort of weather.
2. Rain water invades the dryer, causing damage and grain mold. Grains can also get wet during loading and unloading.
3. Low ambient temperature at night or in winter makes the dryer more fuel-consumptive.
4. By placing CHENYU dryers indoors with proper maintenance, the life span can be as long as 20, or even 30 years.
6.How to choose the right heat source for a grain dryer?
To minimize drying cost, biomass fuels such as rice husk, corn cob, wood pieces, coconut shell and coffee hulls can be CHENYU dryers' heat source.
7.What is a biomass furnace?
A biomass furnace uses agricultural waste to produce clean hot air for grain dryers. A rice husk furnace can use the free husk from your own rice mill as fuel to minimize drying cost. The resulting ash, rich in potassium, phosphorous and calcium, is the best organic fertilizer. Using a biomass furnace makes you eco-friendly by saving energy and reducing CO2 emission.
8.What cares should be taken when using diesel/kerosene as fuel?
Low-quality diesel will cause carbon to build up on the burner and in the combustion chamber, resulting in fire accidents. Please use high-quality premium diesel or kerosene.

9.What are the differences between sun-drying and mechanical drying?
1. Sun-drying is labor-intensive and it is difficult to dry a lot of grains quickly and evenly. Drying is not possible at night or on rainy days, leading to the loss of grain freshness.
2. With one single operator, a dryer can dry a lot of grains evenly in a much shorter time. For each batch, the drying result will be consistent.
10: What is the terms of payment ?
If total amount is lee than 2000USD, 100% in advance.
Payment is more than 2000USD, 30% T/T in advance ,balance before shipping.
If you have any questions, please feel free to contact us.

---
