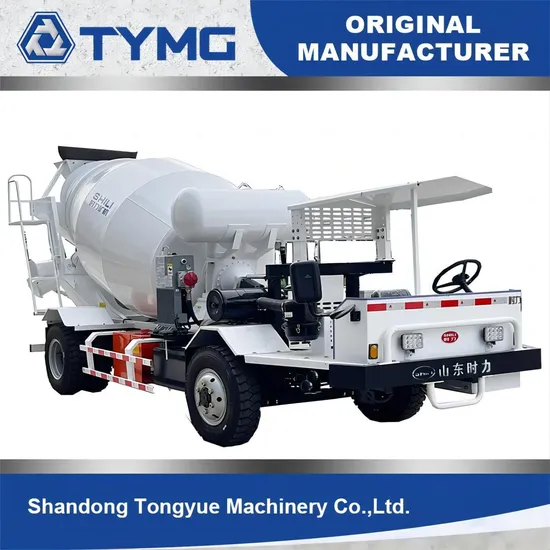

Heavy-Duty Mixing Trucks for Underground Mines

Product Description

Product Description
Concrete mixer trucks provide an efficient, reliable, and cost-effective solution for the concrete supply process through their high mixing efficiency, convenient transportation, strong flexibility, and automation operation.Product Parameters

Product model	Mx5
Driving style	Fully enclosed in the middle
Fuel category	diesel
Engine model	Yunnei490
Engine power(KW)	46
gearbox model	10JS90 heavy model 10 gear
rear axle	DF153
front axle	DF153
Driving type	Rear drive
Braking method	automatically air-cut brake
Front wheel track(mm)	2100
Rear wheel track(mm)	2250
wheelbase(mm)	2900
frame	Main beam: height 120mm * width 60mm * thickness 8mm, Bottom beam: height 60mm * width 80mm * thickness 6mm
Tank volume(m³)	2
Tank wall thickness (mm)	4
Front tire model	700-16 mine tire
Rear tire model	700-16 mine tire (double)
overall dimension	Length 5950mm* Width 1650mm* Height 2505mm Cab height within 2.3m
Load capacity/ton	5

Detailed Photos
Packaging & Shipping
Our tricycles and four wheel dump trucks are exported to Zambia,Peru, Laos,Bolivia,Ecudoar, Malaysia,Cango,Chile ,brazil and etc over 30 countries!
As shown in the packaging image on the left, our mining dump trucks are usually packaged in two forms, SKD and CKD, according to customer requirements.
Company Profile Shandong Tongyue Machinery Co., Ltd is located in Weifang, Shandong Province, China. The main products are mining dump trucks, mining loaders, mining articulated trucks, and other mining, construction, and agricultural equipment. It is a comprehensive high-tech enterprise integrating product design and development, manufacturing, and domestic and foreign sales.
FAQ1,Are you factory or trade company ?
We are factory and We have been producing mining dump trucks for over 20 years.
2,,What is the minimum order quantity for your mining dump trucks?
The minimum order quantity can vary depending on the specific product model and customer requirements. We will provide suggestions based on the actual situation.
3,Can you provide quality certificates and inspection reports for your products?
Yes, we can provide quality certificates and inspection reports for our products to demonstrate compliance with relevant standards and regulations.
4,Is it possible to provide on-site demonstrations or trials?
Yes, we can arrange on-site demonstrations or trials to help customers better understand our products' features and performance.
5,What is the delivery time after ordering? Is there a risk of delayed delivery?
The delivery time can vary depending on the order quantity and product model, but we will inform customers of the specific delivery time after the order is confirmed. We will take all necessary measures to ensure timely delivery and reduce the risk of delays.
6,Can you customize products according to customer requirements?
Yes, we can customize products according to customer requirements to meet specific needs and requirements.
7,Do you provide after-sales service and technical support after ordering? How can customers contact your after-sales service team? Answer: Yes, we provide after-sales service and technical support after ordering. Customers can contact our after-sales service team through email, phone, or online customer service. We will respond as soon as possible to solve customers' problems.
8,What's your payment terms?
T/T: 30% deposit by T/T,70% balance should be paid before shipment or 30% deposit by T/T
9,Are special authorization or licensing required for installing and operating your mining dump trucks?
Generally, special authorization or licensing is not required for installing and operating our mining dump trucks. However, the specific situation may depend on local regulations and standards. We provide installation and operation instructions to ensure the correctness and safety of the use of our products.
