Metal High Quality Stainless Steel 3000W Pipe Tube Fiber Laser Cutting 1500W 6m Tube Machine Factory Price for Sale

Product Description

Product Description

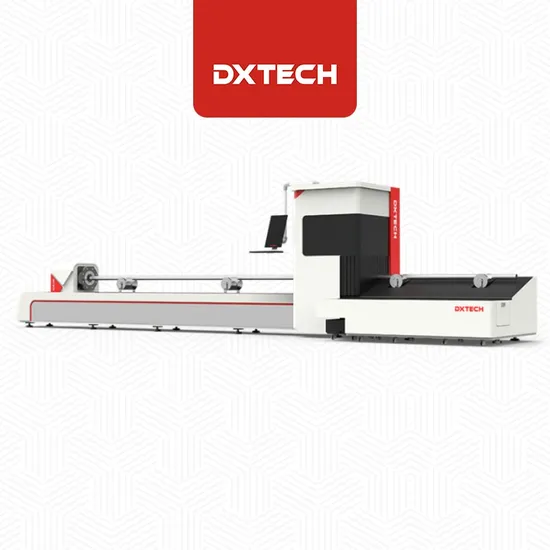

The metal tube fiber laser cutting machine is specially designed for tubes, which improves the cutting quality and efficiency, and is easy to operate. This affordable metal tube laser cutting machine is equipped with a fiber laser unit with laser power from 1kw to 4kw. This fiber laser cutting machine is used for cutting metal pipes such as round pipes and square pipes. Widely used in oil pipelines, sports equipment, water pipes, various pipelines and other industries.

Features
(1) Heavy-duty mechanical structure
Adopting high-quality carbon steel welding bed, it is more stable and durable. The high-strength machine tool adopts 600 ºC stress relief annealing treatment, which has strong structural rigidity, small deformation, and low vibration to ensure cutting accuracy.
(2)Pneumatic self-centering chuck
It has the advantages of high clamping accuracy, fast speed, self-centering gear linkage, and strong pipe loading capability of 120kg.
(3)Split automatic support device
The intelligent tube rack solves the deformation problem during the cutting of long metal pipes.
(4)Autofocus
Without human interference, the focusing speed can reach 10m/min, and the repeatability is about 50 microns.
Product Parameters

Model	DXTECH-T6160/T9160	DXTECH-T6220/T9220
Max. tube length	6.5m/9.2m	6.5m/9.2m
Tube shape	Round/square/rectangular	Round/square/rectangular
Max. tube weight	100kg 16kg/m	200kg 30kg/m
Positioning accuracy	±0.03mm	±0.03mm
Repositioning accuracy	±0.02mm	±0.02mm
Chuck	Two pneumatic chucks	Two pneumatic chucks
Max. chuck rotating speed	130r/min	130r/min
Laser power	1kW - 4kW	1kW - 4kW
Laser	Multiple options	Multiple options
Servo motor and driver	YASKAWA/FUJI	YASKAWA/FUJI
Reducer	Shimpo	Shimpo

Cutting materials and thickness

Carbon steel	0.4-6mm	0.4-10mm	0.4-12mm	0.4-14mm	0.4-16mm	0.4-20mm
Stainless steel	0.4-3mm	0.4-4mm	0.4-5mm	0.4-6mm	0.4-8mm	0.4-10mm
Aluminum	0.4-2mm	0.4-3mm	0.4-3mm	0.4-4mm	0.4-6mm	0.4-8mm
Brass			0.4-3mm	0.4-3mm	0.4-3mm	0.4-8mm
Laser power	500w	750w	1000w	1500w	2000w	3000w

---
